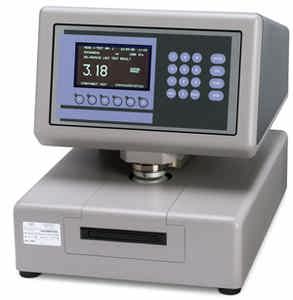

Parker Print Surf Tester (PPS)

DESCRIPTION:

INTRODUCTION: Developed from Dr. John Parker's original method, the Parker Print-Surf (PPS) is designed to accurately measure the surface roughness of sheet materials under conditions similar to those experienced during the printing process. The sample is clamped between a precision engineered measuring head and a specifically designed backing assembly. It provides the information you need to avoid time-consuming, costly printing problems. APPLICATIONS: Fine paper, Coated paper, Newsprint, Coated board, Films and foils, Printing/graphics, Packaging, Carton board SPECIFICATIONS: * Number of measuring heads: One or two (58-07-00-0001) * Roughness range-normal: 0.20 - 6.50µm * Roughness range-high: 6.0 -15.0µm * Air permeance range - ISO 5636/1: 0 - 14.5µm.Pas * Air permeance range - Bendtsen equivalent: 0-10000ml/min * Air permeance range- Gurley equivalent: 1-6000s * Clamp pressures - preset: 500, 1000, and 2000kPa * Clamp pressures - custom setting: 100 - 5000kPa * Conforms to ISO 8791/4 and TAPPI T555

COMMERCIAL DETAILS:

FOB Price * Not Mentioned
Payment Terms As mutually agreed

MORE DETAILS:

Sample Offered? Not Applicable
Sample Terms Not Applicable.
* Prices are subject to change. Please contact the supplier for the latest price.
