DESCRIPTION:

This line consists of;

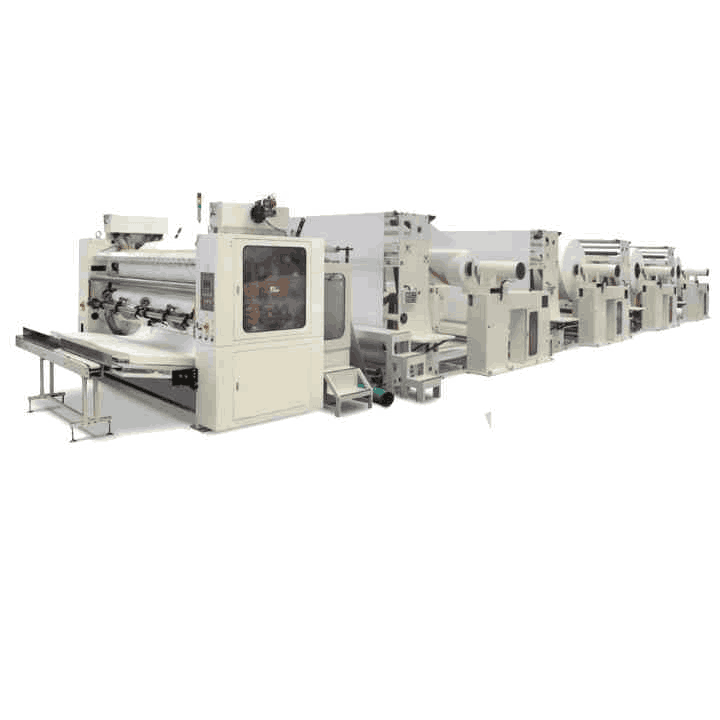

2950 Facial Tissue Folding Machine
Log Saw Cutting Machine
Accumulator

Characteristics:

Jumbo roll max width 2950mm
Web feeding protection could automatalically stop the machine and void damage
Flexible controller arm is more convenient to operate
Each unit is driven by independent motor (servo motor), simple structure decrease the failure rate
Patent technology, the spiral cutting blade, lower blade wastage, protect the blade and shaft
Patent technology of folding roll, increase its rigidity and the vacuum adsorption ability, accuracy and stability of folding are better
Patent technology, top blade trimming function, vacuum system to remove the trimmed tissue


Optional Items;
Backstand, 2-4 plies, with shaft or shaftless type
Embossing, steel to rubber/felted/woolen roller
Lamination, point to point, nested, deco, quick change function optional
Side Trimming Device
Edge Embossing, independent pneumatic
Counting: malposition/ink
Automatic web tension control system


Mode CJ-D-2950
Parent Reel Width 2950mm
Output Direction Cutting Length 180/190/200/210mm
Design Speed 130m/min (1300 sheets/min/lane), 2 plies
Guarantee Operation Speed 100m/min (1000 sheets/min/lane), 2 plies
Max Outter Diameter of jumbo 3000/2500/2000/1500mm
Web Feeding Protection Automatic Web Thickness Monitor
Upper Blade Structure Patent technology, spiral blade cutting device
Bottom Blade Structure Patent technology with suction holes at the blade edge
Drive Type Sectional Drive
Process Control PLC
Folding Type V Fold
