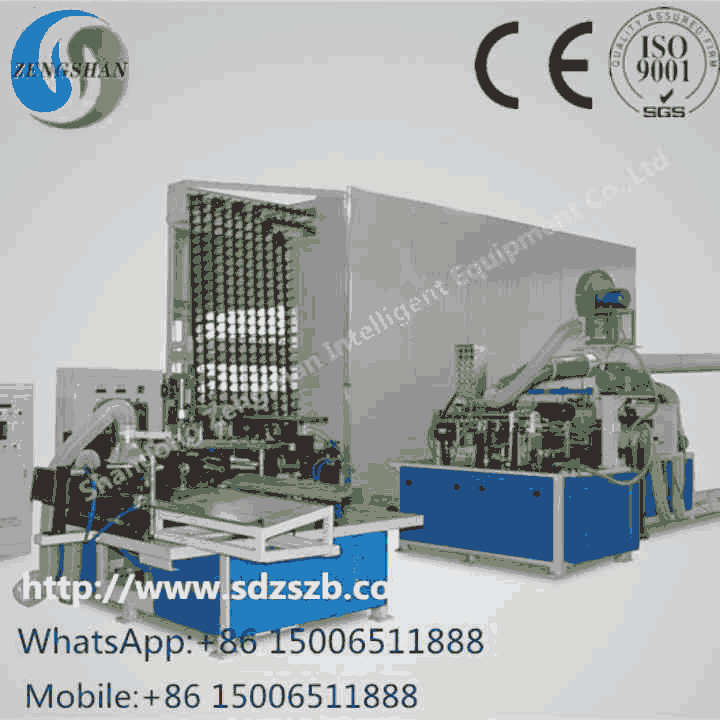

Automatic Conical Paper Tube Production Line

DESCRIPTION:

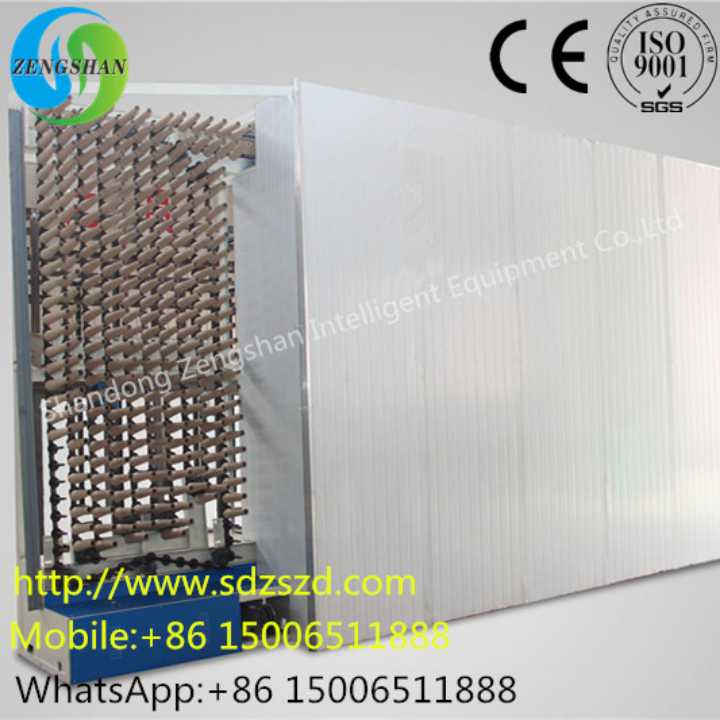

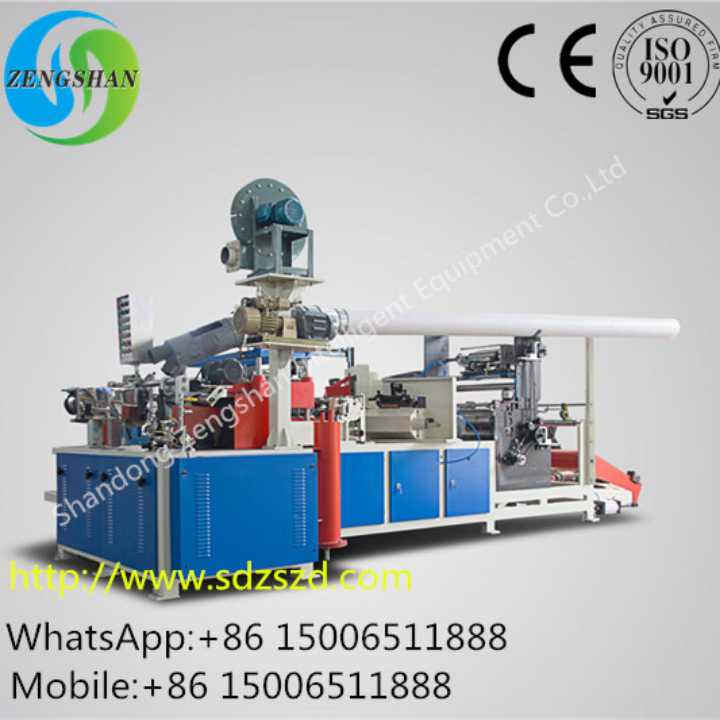

· Need no manual operation from raw paper to paper cone product · The whole production process is controlled by PLC programming · All bearings of the machine adopt Japanese NSK bearings · Each position takes double speed variable frequency control technology · Suitable for the production of a paper cone with various specification Process: Rolling---internal and external printing---edge grinding---cutting---Reeling---Drying---Finishing---cutting V-shaped opening---opening processing---pressing---grinding---galling---finishing Main Parameter: Power 49.2KW Speed 48pcs/min Size 14000mm*6000mm*3800mm Operator 1 · Suitable for a paper cone of various specification · Can achieve internal and external printing, edge grinding, cutting, reeling · It takes double speed variable frequency control technology · The reeling speed can be adjusted freely Main parameter: For conical tubes with various taper and caliber Speed 48pcs/min Power 13.27kw Size 6080mm*2240mm*1500mm · Can achieve V cutting, grinding, pressing, reversing, and galling · The speed can be adjusted freely · This machine can be used individually Main parameter: For conical tubes with various taper Speed 48pcs/min Air pressure 0.3-0.4mpa Size 2600*1600*1580mm · Use chain-type circulation drying · After setting up the temperature, the heat can be controlled, maintained, and adjusted freely · featured low consumption, high outcome Main Parameter: Speed 48pcsmin Power 10.1-24.5kw Size 5620mm*1700mm*3800mm

COMMERCIAL DETAILS:

Min Order Qty. 1 Set
Avg. Lead Time 15 Days
FOB Price * US$72000 / Set
Payment Options L/C, T/T

MORE DETAILS:

Product Condition New
Model No. or Name SZS-2017 Paper Tube Machine
Brand Name ZengShan
Sample Offered? No
* Prices are subject to change. Please contact the supplier for the latest price.
