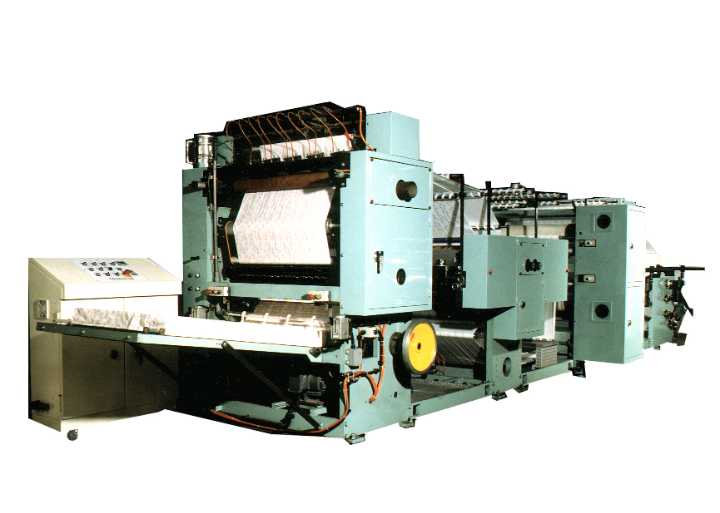

Automatic Facial Tissue / Hand Towel Making Machine
DESCRIPTION: |
|
Model No.: Each set consists of: -With 5 sets of slitting device. -Web tension control by manual. -With driving belt for jumbo roll. -With one set of air lifter for jumbo roll. -With inching. -With one unit of embossing device: steel roller x 2 pcs & rubber roller x 2 pcs. -With auto slow down device before jumbo roll used-up gradually. -Counting by pneumatic right/left moving. Specifications: * Sheet size : 200(L)x190-250(W)/mm * Folding type : Interfold * Folded size : 100(L)x190-250(W)/mm * Speed : 3360-4200 sheets/min. for hand towel with 6 lanes of output 4800-6000 sheets/min. for facial tissue with 6 lanes of output * Converting material: A. 1 to 2 ply towel tissue, 17 to 45gsm (To ensure the penetration of hand towel is good for vacuum folder, the buyer have to send the paper sample in advance and supply 4 rollers at least for test running when machine be made.) B. 2-ply facial tissue, 13gsm~14.5gsm x 2 ply. * Main power : 20 HP Motor * Air blower power : 60 HP Motor * Jumbo roll width : Max. 1380mm * Jumbo roll dia. : Max. 1500mm φ * Jumbo roll core dia. : 76.2mm (3") * Compressed Air : Air source 6 kg/cm2 * Capacity : 0.200*0.210*4000*0.038kg/㎡*1-ply*60min.*8h*0.8= 2,451Kg/8h 2,451*340 days = 833 ton/year |
|
COMMERCIAL DETAILS: |
|
| Min Order Qty. | 1 Set |
| Avg. Lead Time | 120 Days |
| FOB Price * | Not Mentioned |
| Payment Options | L/C, T/T |
| Payment Terms | 1. 30% of deposit by T/T remittance. 2. 70% by irrevocable & confirmed L/C in our favor through a prime bank available by draft(s) at sight. Within 90 days after receipt of your remittance. |
| Country of Origin | New Taipei City. Taiwan |
| Shipping Port | Keelung, Taiwan |
MORE DETAILS: |
|
| Product Condition | New |
| Model No. or Name | FT6L |
| Brand Name | Jiu Ming |
| Supply Capacity | 2 Sets / Month |
| Packaging | Loaded in container with pallet. |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
