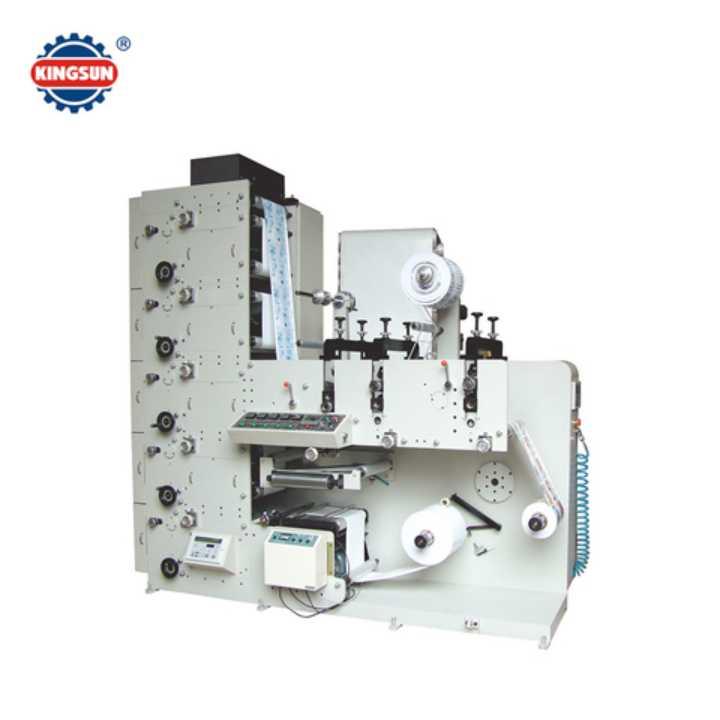

FP-320 Model Flexo Label Sticker Printing Machine
DESCRIPTION: |
|
The FP-320 Series flexo Label Sticker printing machine or flexographic printing press is suitable for printing roll paper or label paper and film. It can finish printing, UV varnishing, infrared drying, film laminating, rotary die cutting and rewinding (according to customers' requirements). Main machine is frequency inverter control, tension control by magnetic powder with Japan tension controller. The mechanism structure is compact and easy to operate and save space (overlap type), it is ideal for label printing converting. Specifications: 1) Printing speed: 5 - 80m/min 2) Print color: 4 colors (5 or 6 color) 3) Flexo plate thickness: 1.7mm 4) Thickness of double adhesive tape: 0.38mm 5) Max. diameter of unwinding: 600mm 6) Max. diameter of rewinding: 550mm 7) Max. printing circumference: 323.85mm(or custom-built) 8) Min. printing circumference: 177.8mm 9) Color register precision: less than 0.15mm 10) Main motor power: 2.2kW 11) Total: 18.2kW(according to different color unit and UV system) 12) Power voltage: 380V,50HZ(or special make) 13) Overall dimensions: 2 x 1.1 x 2.5m 14) Machine weight: about 2800kg Packing: wooden case Note: this series flexo label sticker printing machine can special made as 450/500/600/850mm size. Welcome to contact us for more information. |
|
COMMERCIAL DETAILS: |
|
| Min Order Qty. | 1 Piece |
| Avg. Lead Time | 20 Days |
| FOB Price * | US$28500 / Piece |
| Payment Options | L/C, T/T |
| Payment Terms | 30% in advance and balance on delivery |
| Country of Origin | Wenzhou City, Zhejiang Province, China |
| Shipping Port | FOB Ningbo, China |
MORE DETAILS: |
|
| Product Condition | New |
| Model No. or Name | FP-320G |
| Brand Name | Kingsun |
| Supply Capacity | 1 Piece / Week |
| Sample Offered? | No |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
