Paper Edge Board Machine

DESCRIPTION:

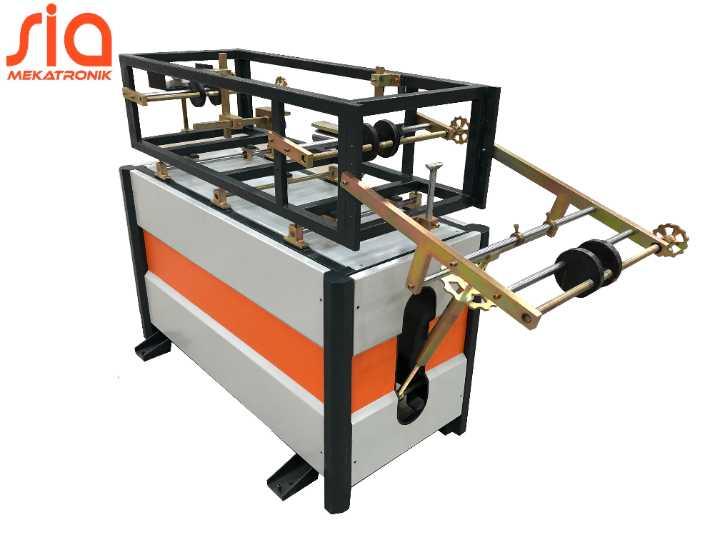

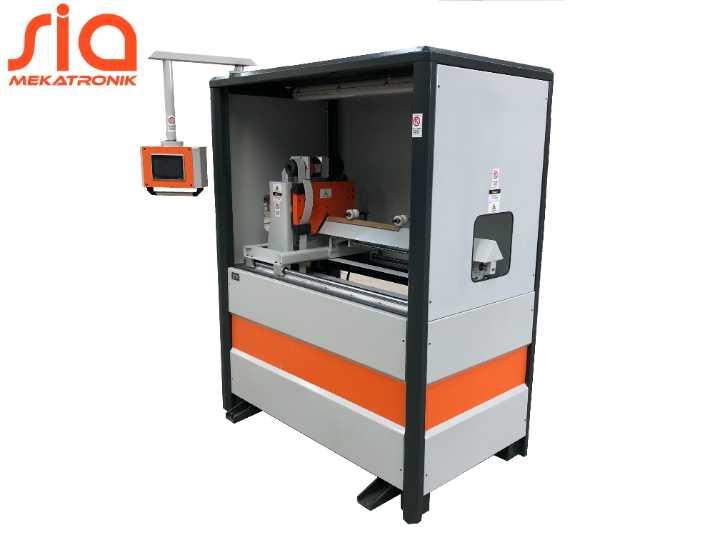

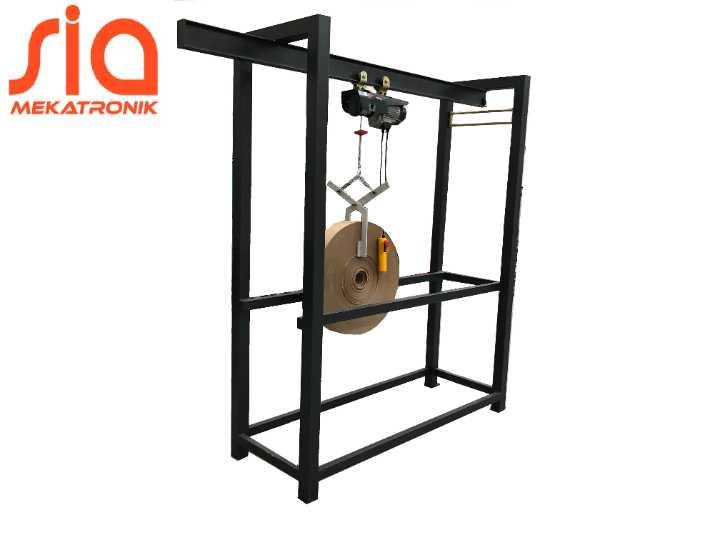

General Informations: High-speed mixer pipe machine Automatic Blade Positioning Servo Motor Controlled Blades Servo Controlled Car Easily accessible User Interface Automatic Hanger Angle Control Paper Break Warning Multiple 12-blade operations Hanging: 1. 45-degree paper roll hanger 2. 12 layers of paper bobbins can be loaded 3. Paper roll width 300 mm 4. Paper roll center adapter 5. Wheel chassis 6. Chassis fixing screws Kraft Paper Stand: 1. Paper roll width 500 mm 2. Electric winch (1000 Kg) Paper Glue Stand: 1. Pneumatic glue pump 300 Lt / min 2. Electric glue pump 300 Lt / min 3. Electric heater (5 KW 3 phase) 4. Mechanical paper brake 5. Mechanical glue stripper 6. Kraft glue application motor (0.18KW) Front Form Stand: 1. Minimum angle size: 30x30 2. Maximum angle bar size: 120x120 Forming Stand: 1. Upper pneumatic pressure rollers 2. Paper guiding rollers Corner Press Stand: 1. 7.5 kw 125 rpm lower tractor rollers 2. 11 kw 250 rpm top tractor rollers 3. Pneumatic angle press unit 4. Upper roller diameter 350 mm 5. Lower roller diameter 250 mm 6. All electric motors are speed controlled Ironing Stand: 1. 2000 mm heater length 2. 3 kw heater resistance Flying Shear Cutting Stand: 1. Guillotine blade system 2. Servo motor control cutting 3. Servo motor controlled flying scissors 4. Cutting range min: 500 mm max: 6000mm 5. Maximum cutting speed 80 mt / min (1-meter length) 6. Servo motor brand: Sew euro drive 7. Hmi brand: Beijer 7 inc Belt Conveyor: 1. Belt motor 0.37 kw 2. Strap length 2500 mm 3. Belt width 300 mm 4. Speed ​​controlled belt motor

COMMERCIAL DETAILS:

FOB Price * Not Mentioned
Payment Options Escrow, L/C, D/D, D/A, D/P, T/T, M/T
Place of Origin Adana
Shipping Port Iskenderun

MORE DETAILS:

Product Condition New
Brand Name Sia Mekatronik
* Prices are subject to change. Please contact the supplier for the latest price.
