WenZhou XinChen Machinery Co., Ltd.

DESCRIPTION:

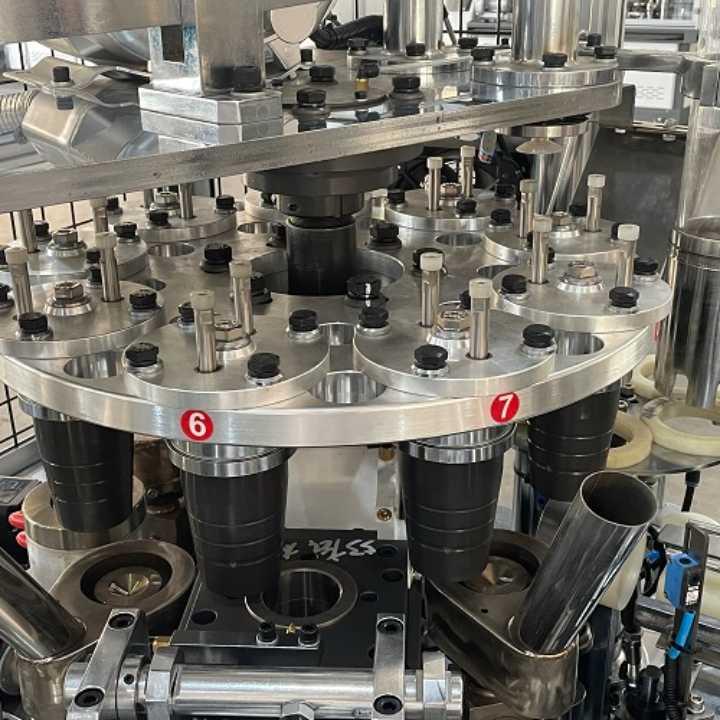

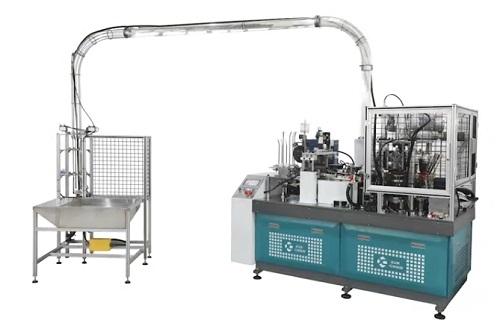

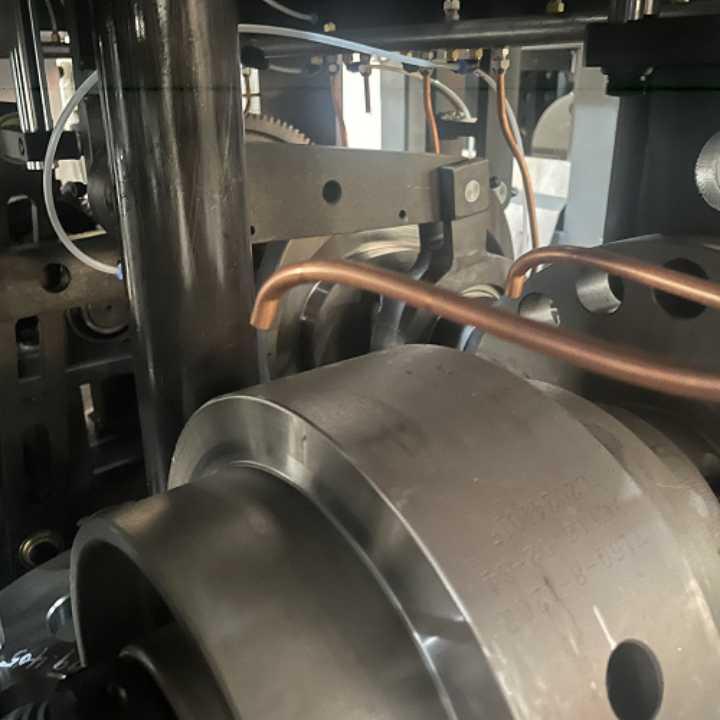

Machine Description: XC-100 paper cup machine with stable 80-100pcs/min speed, could produce 2.5oz-12oz paper cup. The machine is controlled by PLC and touch screen, easy to operation. It's a good choice for producing coffee cups, tasting cups, disposable paper cups, etc. Machine Features: 1. 3 station of heat gun design. Effectively prevents damage to the printed portion of the paper cups during heating. 2. Desktop layout. Isolate the production and transmission parts to ensure the hygiene of paper cup production and avoid pollution. 3. Automatic lubrication system. Only needs to be replaced every 6 months. Extend the life of the equipment Machine Parameters: 1. Speed: 80-100pcs/min 2. Produce Range: 2.5-12oz (100ml-350ml) (Top) 43-85 (Bottom)36-62 (Height)46-115 3. Paper Material: 150-260(Single/Double-PE) 4. Weight: 2400kg 5. Dimension: 2200*1100*1900mm (L*W*H) 6. Power: 3 phrase 380V 10KW 7. Air Source: 0.4m³/min 0.4-0.6mpa
