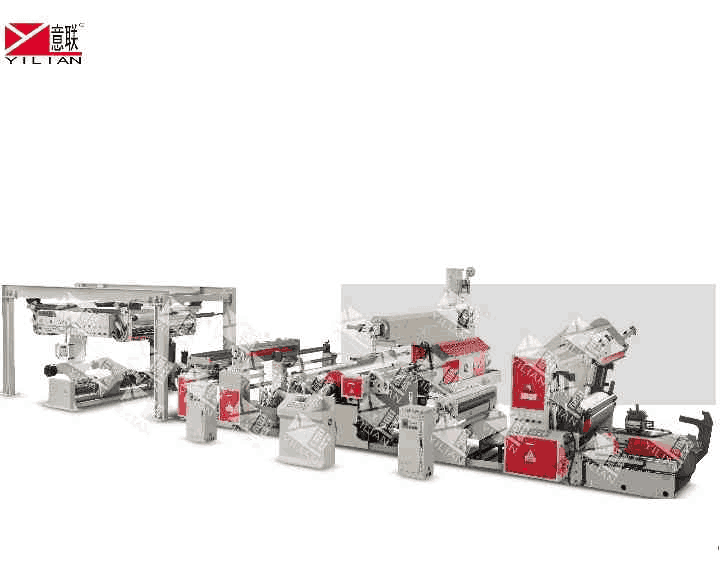

Automatic WSFM1300 Paper/PE Film Extrusion Coating Machine

DESCRIPTION:

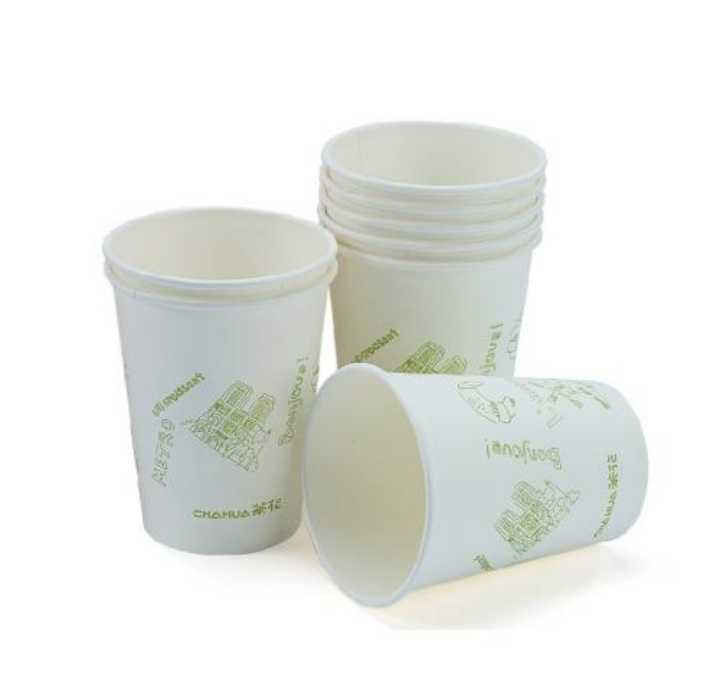

Application: For producing single side PE coated paper cup, paper bowl, instant noddle bowl paper etc Main features: 1. PLC man-machine interface control, the design of mechanical-electrical integration 2. High precision and imported die head 3. High speed and efficient mixing equipment (Italian technology) 4. Automatic hydraulic filter screen exchange 5. Equipped with dry type composite system, with the function of the dry composite machine 6. Can be matched with a single extruder, twin extruder, multilayer coextrusion The main technical parameters: Machinery specification 1300/100 mm Speed of coating film 150m/min, 180m/min, 200m/min Suitable coating resin film LDPE, PP, EVA, EAA Suitable base material BOPP, BOPET, BOPA, CPP, CPE, PAPER, AL Width of coating film 300mm Thickness of coating film 0.012-0.1mm Inaccuracy thickness of coating film ±5% Complex cooling roller 700mm Screw specification (L/D)90:33, 100:33, 105:33, 110:33 Main unwinding diameter 800-1500mm Diameter of auxiliary unwinding 500mm Diameter of rewinding 800-1700mm

COMMERCIAL DETAILS:

Min Order Qty. 1 Set
Avg. Lead Time 45 Days
FOB Price * Not Mentioned
Payment Options L/C, T/T
Place of Origin China
Shipping Port ningbo

MORE DETAILS:

Product Condition New
Model No. or Name WSFM1300
Brand Name Yilian
Supply Capacity 20 Set / Month
Packaging HQ
Sample Offered? No
* Prices are subject to change. Please contact the supplier for the latest price.
