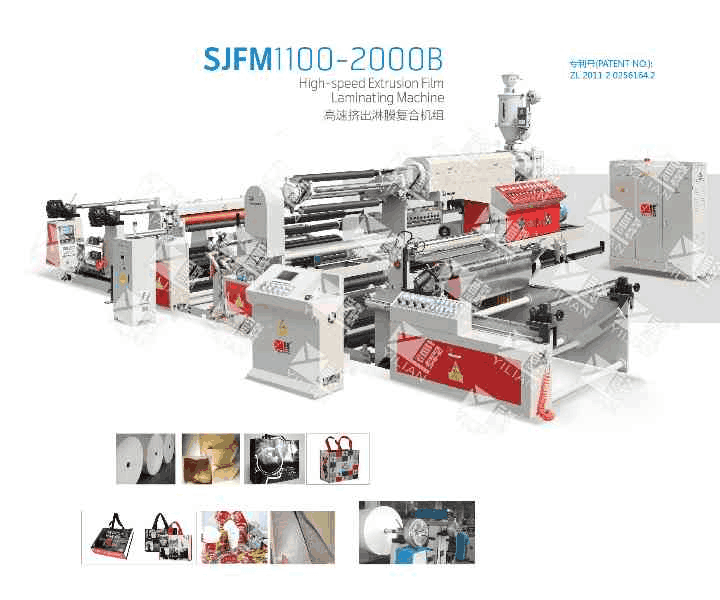

Yilian Brand Extrusion Lamination Machine
DESCRIPTION:
Brief introduction: This series of equipment in the paper, plastic film, textile cloth or aluminum foil as the substrate, by casting, a compound into two layers, three layers, the jumbo Jumbo + paper sandwich composite) 1. Applicable coating film resin: Coating grade like LDPE /PP /EVA/EAA etc 2. Based material: paper (35 - 425 g/m2 ) 3. Lamination material: PE/BOPET/BOPP/OPP/CPP/Aluminium 3. Max working speed: 100-150 m/min 4. Max width of coating film: 1200 mm 5. Thickness of coating film: 0.01-0.11 mm 6. Inaccuracy thickness of coating film: ± 6% 7. Setting range of Auto-tension : 10-200 kg/entire width (constant tension) 8. Max extrusion: 200 kg/h 9. Compound cooling roller: 500*1300mm (can choose) 10. Total power: about 80kw 11. Max rewinding diameter: 1300 mm 12. Inside diameter of base material: 76 13. Machine total weight: about 15000 kg 14. Overall dimension: 9600 mm x 8000 x 3250mm (LxWxH) 15. Machine color: can choose
COMMERCIAL DETAILS:
- Min Order Qty.
- 1 Set
- Avg. Lead Time
- 45 Days
- Payment Options
- L/C, T/T
- Place of Origin
- China
- Shipping Port
- Ningbo
MORE DETAILS:
- Product Condition
- New
- Model No. or Name
- SJFM1300B
- Brand Name
- Yilian
- Supply Capacity
- 30 Sets / Month
- Packaging
- HQ
- Sample Offered?
- No
