DESCRIPTION:

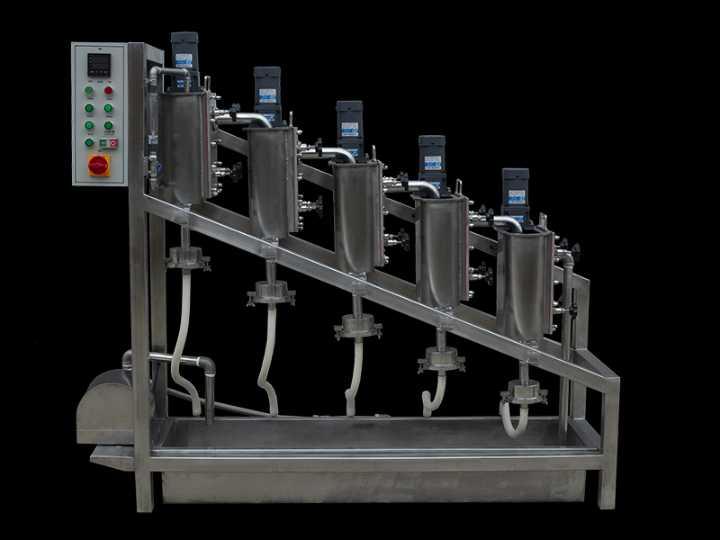

The PL10-A Bauer Fiber Classifier (Bauer Fiber Classifier, Bauer Mc Nett) is the equipment used for measuring the weight-average fiber length of pulp fiber according to the screening method by pulp and paper-making laboratory. This machine conforms to the screening methods stated by GB/T 2678.1-1993, TAPPI T233cm-95, CNS 12428-1988 and the SCAN M6 (10g samples, water flow time 15min, flow rate 10L/min). It can also be used to measure the ratio of different fibers in the pulp. The PL10-A Fiber Classifier includes a reducing motor, agitator, water tank, stander, unit switch, timer and flow meter and so on. The water tank is the main device of this machine; the agitator is used to make fibers spread in water sufficiently, do directional movement and parallelly go through the screen mesh for separation. The sieving plate prevents water and fibers from rushing at the screen mesh vertically, and the screen mesh is mainly for fiber grading. Parameters: 1. Specimen tank: 5 tanks; Specimen tank: 10g (O.D.) 2. Sieve differentiator capacity: 10L. 3. The speed of the blender: (580±1) r/min. 4. Sieve mesh: 14mesh, 28mesh, 48mesh, 100mesh. 5. Flow velocity: 0~20L/min (According to the experiment adopted standard adjustment). Precision grade 0.5%R. 6. Screening time: 0~9999min (According to the experiment adopted standard adjustment). 7. Main material: 304 Stainless steel. 8. Outer dimensions: 1780mm (long) × 520mm (width) × 1680mm (high). 9. Instrument weight: 130Kg. 10. Source: continuous water. 11. Power: 600W/380V. Commonly Used Strainer: Long Fiber: 10mesh, 14mesh, 28mesh, 48mesh. Middle Fiber (Leaving the Plant Mesh): 14mesh, 28mesh, 48mesh, 100mesh. Short Fiber: 28mesh, 48mesh, 100mesh, 150(200)mesh.
