Rewinding Machine

DESCRIPTION:

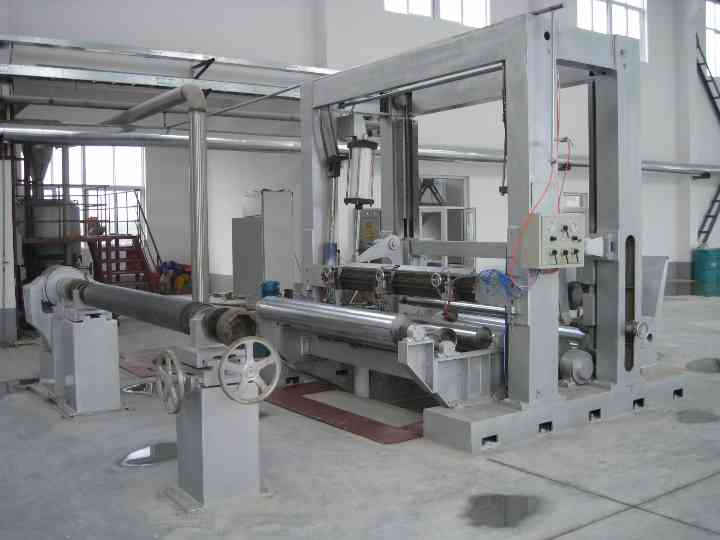

ZWJK(K)-3048-600m-min2 Rewinder Paper width: 3048mm Paper feeding: from bottom Working speed: 600m/min Basis weight: 40-90g/m2 Maximum diameter of original roll: Φ2000mm Maximum diameter of finished paper: Φ1200mm Support roll diameter: Φ500mm Frame center distance: 4280mm Support roll center distance: 3800mm Main motor: Y280M-4, 45Kw Unwinding: pneumatic Reducer: double output shaft Dimension: 4130x6580x3200mm All rotary roll with dynamic balance, dynamic balance speed: 800m/min

COMMERCIAL DETAILS:

Avg. Lead Time 70 Days
FOB Price * Not Mentioned
Payment Options L/C, D/P, T/T
Place of Origin China

MORE DETAILS:

Product Condition New
* Prices are subject to change. Please contact the supplier for the latest price.
