DESCRIPTION:

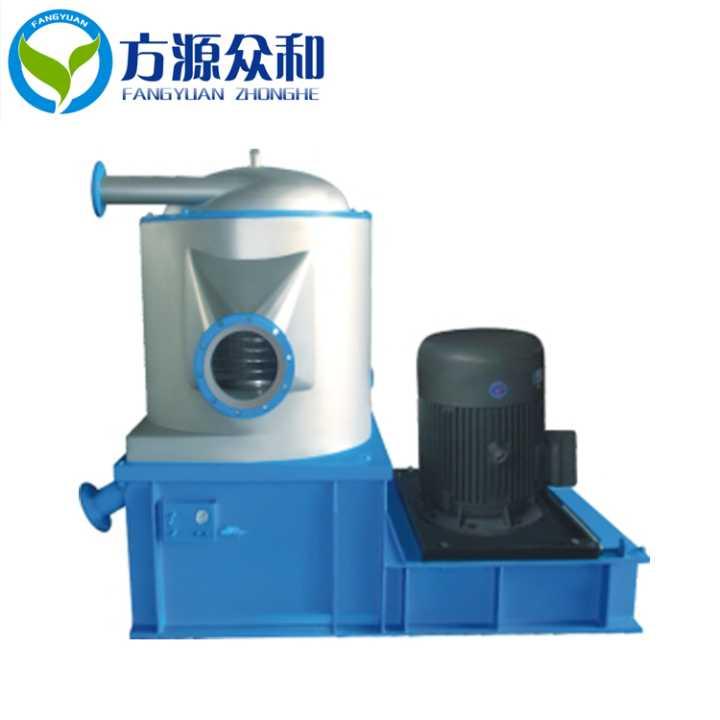

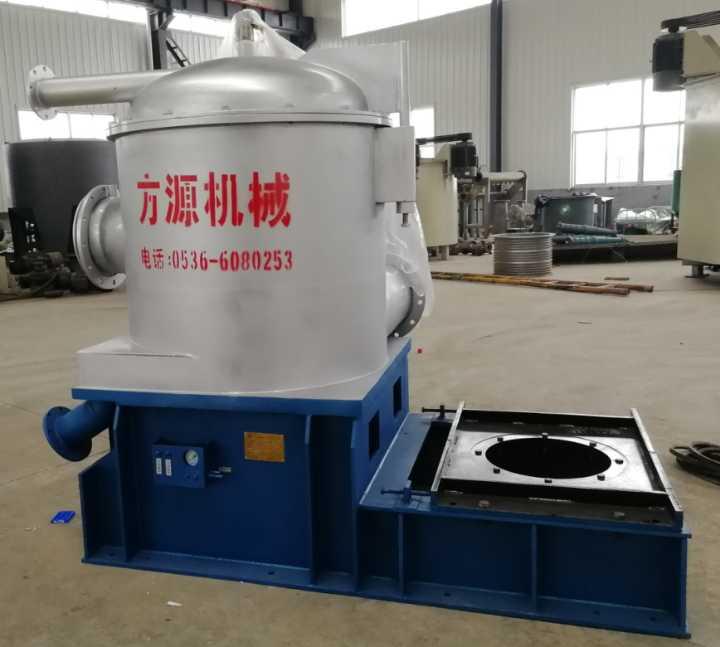

FLS Upflow Pressure Screen: FLS type upflow pressure screen is a new type of recycled pulp screening equipment developed and designed by our company based on the digestion and absorption of imported prototypes and reference to advanced foreign technical data. This equipment is designed as an upflow structure based on the characteristics of impurities in recycled pulp, and can be widely used for coarse and fine screening of various waste pulp, as well as screening of pulp in front of paper machines. It has unparalleled good working performance and reliability, and is a replacement product for various domestic pressure screens used for recycled pulp treatment. FLS UPFLOW PRESSURE SCREEN(COARSE SCREEN) Model FLS0.3 FLS0.5 FLS0.8 FLS1.2 FLS2.0 FLS3.0 FLS4.0 FLS5.0 Size of sieve hole(mm) φ1.2-φ4 Screening area(m2) 0.3 0.5 0.8 1.2 2.0 3.0 4.0 5.0 Concentration of inflow & output 1.5-3.0 pulp(%) Power of motor(kw) 15 30 37 55 90 132-160 160-220 250-315 Production capacity(t/d) 10-30 20-60 40-80 50-100 80-150 150-350 200-500 400-800 FLS UPFLOW PRESSURE SCREEN(FINE SCREEN) Model FLS0.3 FLS0.5 FLS0.8 FLS1.2 FLS2.0 FLS3.0 FLS4.0 FLS5.0 Dimension of sieve seam(mm) 0.15-0.45 Screening area(m2) 0.3 0.5 0.8 1.2 2.0 3.0 4.0 5.0 Concentration of inflowt&output pulp(%) 0.8-2.0 Power of motor(kw) 15 22 30 45 75 132 185 315 Production capacity(t/d) 10-20 20-30 25-50 40-80 70-140 120-200 150-400 200-600
