📌 Key Takeaways
Kraft paper parent rolls need clear locations, clear statuses, and clear next steps — not just available floor space.
- Zone by Status, Not by Space: Group rolls by how they’ll be used — active picks, reserve, quarantine, partials, and staging — so nothing gets buried or mixed up.
- Every Extra Move Risks Damage: Poor slotting forces re-handling, and each unnecessary touch increases the chance of wrapper tears, edge hits, and clamp marks.
- Rotate by Usability, Not Just Age: The oldest roll isn’t always the right next pick — damaged, moisture-exposed, or held rolls should stay out of the normal queue until cleared.
- Stage in Sequence, Not in Bulk: Pull only what the next job needs, in the order production expects, to cut exposure time and avoid unnecessary risk.
- Visual Controls Beat Memory: Marked zones, status tags, and location IDs keep things running across shift changes — tribal knowledge breaks down when that one person is absent.
Store by status. Rotate by usability. Stage by sequence. Keep production ready.
Warehouse supervisors and production planners at converting operations will find practical ways to reduce roll damage and picking delays here, preparing them for the detailed overview that follows.
~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~
The roll is in inventory. Somewhere.
A clamp truck reverses down a narrow aisle, the operator scanning labels that do not match what the system says. Behind two slow-moving specialty rolls sits the kraft liner grade the converting line needed ten minutes ago. The wrapper has a tear from a previous move. Nobody recorded it.
This scenario plays out in converting operations worldwide — production waiting on material that technically exists but is buried, mislocated, damaged, or simply not staged in the right sequence. The warehouse looks full. The converting line still cannot get what it needs on time. While rolls are physically present, the underlying failure stems from a layout prioritized for spatial density over operational throughput.
The practical goal is straightforward: every roll should have a clear location, a clear status, and a clear next step. With a framework for zone design, rotation discipline, slotting logic, and staging control, a storage area that merely holds rolls becomes one that reliably feeds converting lines.
Why Parent Roll Storage Has to Support Production, Not Just Space Utilization
A warehouse can be full and still not be ready. That distinction matters more than most storage plans acknowledge.
Kraft paper parent roll storage decisions touch picking speed, roll condition at the point of use, forklift travel paths, staging discipline, inventory accuracy, and rotation compliance. These are not abstract warehouse metrics. They are production reliability metrics. When an operator spends time searching for a grade that should be accessible, or discovers wrapper damage only at the point of picking, the storage system is failing production — regardless of how organized the floor plan looks.
Storage density can look efficient until it increases re-handling. A roll tucked deep behind slow-moving stock may save floor space, but it costs time every time a daily-use grade needs to move. Worse, rushed picking increases clamp contact, wrapper scuffs, edge damage, and exposure risk.
The most revealing diagnostic is internal data. Delay reasons, damage logs, re-handling frequency, and production downtime tied to material availability will show whether storage is genuinely supporting the converting line. If the ERP shows a roll as available but operators regularly find it blocked behind other stock, unidentified after a partial return, or sitting in a location nobody updated after overflow, the system is giving planners false confidence — a problem that compounds when quality variance in incoming material is already eroding margins. That false confidence is where downstream problems begin.
That is the difference between stored inventory and usable inventory.

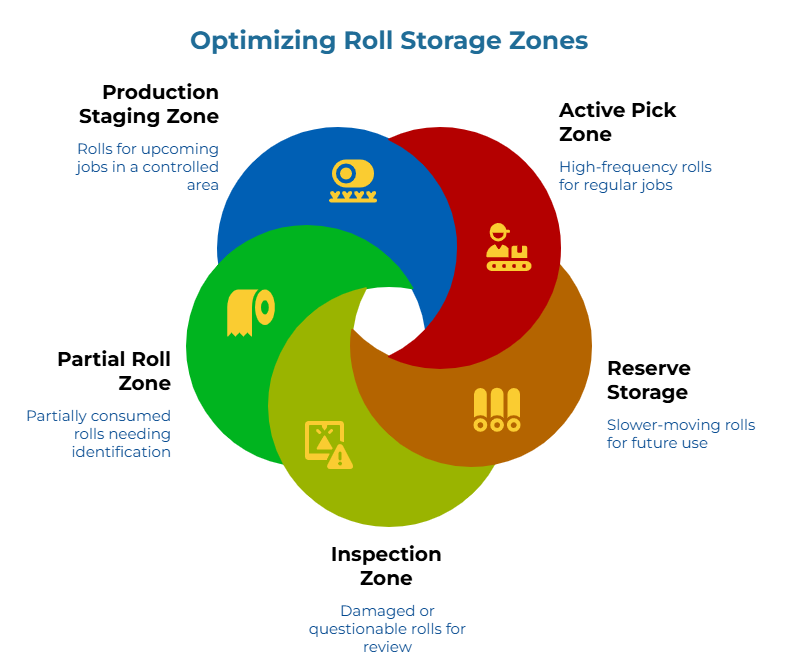

Design Storage Zones Around Roll Status and Use
Separate rolls by status first, then refine the layout by grade, width, diameter, basis weight, and movement frequency. Storing rolls wherever space happens to be open leads predictably to mixed statuses, buried inventory, and confusion during urgent picks. Zones defined by how rolls are actually used solve this in a way that space-first layouts cannot.
- Active pick zone. High-frequency grades, widths, and basis weights that feed regular converting jobs belong here. Fast access and minimal re-handling are the governing principles. A fast-moving kraft linerboard grade picked daily should not sit three rows deep behind slower-moving specialty stock.
- Reserve storage. Slower-moving or future-use parent rolls go here. They do not need immediate access, but they still require location accuracy and rotation visibility. The risk in reserve areas is the same as in any lower-traffic zone: rolls get forgotten, statuses go stale, and age creeps up unnoticed. Reserve storage keeps slower-moving stock controlled without letting it occupy prime picking space — a distinction that matters when floor area is tight.
- Inspection or quarantine zone. Rolls with wrapper damage, suspected moisture exposure, clamp marks, edge damage, or labelling problems should be separated immediately on identification. Mixing questionable stock into general available inventory risks sending compromised material to the line — which is a more expensive mistake than the extra handling required to segregate it.
- Partial roll and returned roll zone. Rolls returned from production, or partially consumed rolls, need fresh identification before returning to storage. That identification should show remaining quantity, condition, and approved use. Without it, partial rolls become invisible inventory: counted as available but functionally uncertain.
- Production staging zone. Rolls released for a specific upcoming job belong in a defined staging area, managed within a controlled window. The size of that window should reflect the actual reliability of the production schedule.
Even facilities with tight floor space can implement a lightweight version of this zoning approach. Marked lanes, painted boundaries, rack or floor location IDs, and clear status tags can create meaningful separation without requiring a major layout change. The physical separation does not need to be elaborate. It needs to be consistent.
Use Slotting Logic That Reduces Re-Handling
Every unnecessary move increases handling time and raises the probability of clamp damage, edge contact, or wrapper tears. Poor slotting is one of the primary causes of unnecessary movement, and it compounds over time as temporary locations quietly become permanent ones.
Poor slotting usually shows up as repeated relocation.A roll is moved to reach another roll. It is moved again because it blocks an aisle, and a third time because production needs space for staging. None of those moves add value.
This logic depends on operational rigor rather than spatial availability. Prioritize the placement of high-velocity stock—defined by turnover frequency—nearest to the primary staging corridors or dispatch nodes. Keep compatible rolls together without mixing statuses. Leave enough access space for safe equipment movement, and prevent the blocked aisles, blind corners, and awkward forklift approaches that operators learn to work around rather than report.
A common pitfall is overflow without discipline. Overflow is not the problem. Invisible overflow is the problem. If a roll moves to overflow, the location record, physical label, and status tag must move with it.
For operations in the United States, OSHA’s general material handling standard (29 CFR 1910.176) requires that aisles and passageways remain clear and that stored materials must not create hazards. The related powered industrial truck standard (29 CFR 1910.178) sets requirements for safe forklift movement through storage areas. Facilities outside the United States should apply equivalent regional regulations. The underlying principle is consistent regardless of jurisdiction: storage layout is a safety requirement, not just an efficiency preference.
When slotting decisions are made based on how rolls actually move rather than where space happens to be available, the number of touches before a roll reaches production decreases. That reduction in touches is directly correlated with a reduction in handling damage.

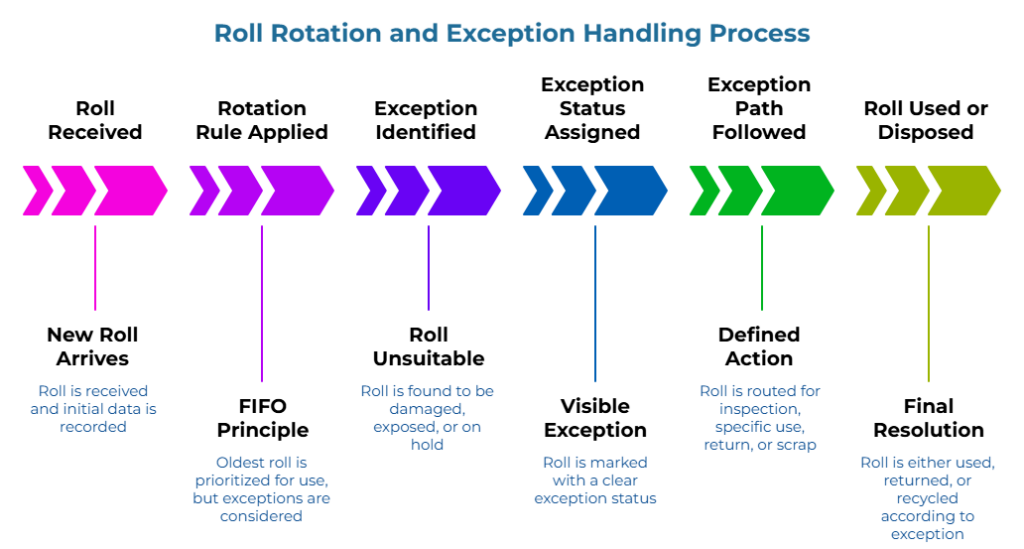

Build Rotation Rules That Prevent Forgotten Rolls
FIFO is a sound starting principle for parent roll rotation. It is not always sufficient on its own.
The oldest roll should not automatically be the next one consumed if it is damaged, exposed to moisture, under an inspection hold, or unsuitable for the current job. The more accurate principle is prioritizing fitness-for-use over chronological receipt — with clear controls for exceptions. Effective rotation tracks date received, lot or batch identification, mill source where relevant, grade and specification, width, diameter, and basis weight, wrapper and edge condition, moisture or exposure concerns, partial-roll status, inspection or quality holds, and approved production use. This is a wider definition of rotation than age alone, but it reflects what converting lines actually need.
The strongest rotation systems have exception logic built in. When a roll cannot follow normal rotation, it needs a visible exception status with a defined path forward: use first, hold for inspection, approved for specific jobs only, return to supplier for claim review, downgrade or alternate-use approval, or scrap and recycle decision. What it must not have is an ambiguous status that leaves the next operator to guess. Clear exception routing prevents an operator from making a quality decision at the clamp truck while the line is waiting.
The moisture dimension deserves particular attention. As covered in the guide on storage and conditioning for kraft reels, transit and storage conditions can reset a roll’s moisture profile even when mill certificates show acceptable values at the point of manufacture. Rolls with suspected moisture exposure should not re-enter the normal rotation queue without verification — the moisture windows guide for kraft paper converting explains why range-based moisture targets and ISO 287 testing provide more reliable results than single-point readings. ISO 287 provides an accepted method for determining the moisture content of paper or board lots — a useful reference for resolving disputes about rolls that may have been compromised during storage or transit. Whether and how that standard applies to a specific receiving or storage decision depends on the facility’s quality system, supplier documentation, and testing procedure.
Control Partial, Damaged, and Questionable Rolls Separately
Questionable rolls getting mixed back into normal available inventory is one of the most common real-world storage failures in converting operations. It happens not because operators intend to create confusion, but because the system does not make the correct action obvious.
Partially used rolls need fresh identification before returning to storage. The flow should be deliberate: return from line, inspect, relabel, update remaining quantity, assign approved use, then store in the partial-roll zone. Simple — but not casual. A returned partial roll placed back into the same slot as full rolls, without clear remaining-quantity and condition data, creates confusion that compounds over every shift change.
Wrapper damage should trigger inspection according to internal quality procedures — not informal reuse based on a visual estimate. “This one looks fine” is not an inventory status, especially during rushed production picks when operators are under pressure and reach for the nearest available roll without checking condition history.
Every roll returning to storage should carry a clear status. Available. Partial available. Hold, Inspection Required, Damaged, Rework/Alternate Use, or Not for Production. A standard set of status tags, kept near staging and return areas, makes the correct action require less effort than the incorrect one. Designing the physical environment so that compliance is the path of least resistance ensures adherence without constant manual oversight.
Plants that source or compare different kraft grades can also benefit from keeping specification knowledge close to warehouse decisions. The kraft paper grade guide for SME converters is a useful background when teams need to connect grade selection, converting use, and storage priorities.
Stage Rolls for Production Without Increasing Damage Exposure
Production teams want material ready early. Warehouse teams want to protect rolls until they are needed. Both sides are right. Managing the tension between them is the central staging challenge.
Define staging windows based on how reliable the production schedule actually is. If schedules change frequently, excessive pre-staging leaves rolls exposed to forklift traffic, moisture, and accidental contact longer than necessary. Staging a full day’s worth of rolls during an unstable scheduling period is not readiness — it is a risk with a label on it.
Stage rolls in sequence for the upcoming job, not in bulk. If a converting line needs three rolls for the next run, staging should reflect the actual run order — roll one, roll two, and roll three in the sequence production expects. Pulling five or six additional rolls “just in case” and leaving them in a high-traffic corridor increases damage risk without meaningfully improving readiness. The staging area is not a buffer zone. It is the final step before the line.
A ‘ready for line’ status should mean the roll is physically staged, correctly identified, and confirmed suitable for the job — with conditions verified against the specification before the roll advances to the converting line. Any environmental requirements for staging areas — temperature, humidity, wrapping integrity, floor contact, or maximum staging duration — should be verified against supplier guidance, applicable quality specifications, or internal SOPs. The reel and core fit checklist covers the machine-readiness verification steps that should accompany physical staging for kraft converting lines.
For broader protection principles around paper movement and exposure, the guide on paper protection during shipping can support related discussions about moisture barriers, edge protection, and handling discipline.
Fix Storage Location Errors Before They Become Handling Problems
Small location errors cause larger downstream problems. The same grade stored across multiple unmarked areas. Rolls placed in overflow without system updates. Partial rolls mixed with full rolls. Hold rolls sitting in active pick locations. Production-staged rolls still appearing as general inventory in the ERP. Physical labels that do not match digital records. Old rolls buried behind newer receipts.
Each of these conditions forces operators to search, re-handle, and improvise — and improvisation is precisely how rolls get damaged during urgent picks. Location accuracy is not only an inventory control metric. It directly affects forklift travel distance, production readiness, damage risk, and the level of trust that production planners place in the inventory system. When planners stop trusting the system, they develop workarounds — safety stocks in informal locations, verbal reservations, manual tracking outside the ERP — that make the underlying problem worse.
Audit the highest-risk locations first: overflow areas, zones with frequent status changes, and positions where multiple grades share adjacent slots. The most common failure points are predictable: overflow areas, partial-roll zones, inspection holds, staging lanes, and old stock buried behind newer receipts.
Relying on operator memory rather than visible location logic may work across a single shift. It breaks during shift changes, absences, urgent jobs, new hires, and inventory audits. If operators “already know where everything is,” the system is too fragile. Good storage control should survive the absence of the one person who remembers the corner where odd rolls go. Tribal knowledge is not a storage system. It is a vulnerability.
Use Simple Visual Controls Before Overcomplicating the System
Many mid-market converting facilities do not have advanced WMS workflows or automated location control. That does not make disciplined storage impossible. It makes accessible tools more important.
Practical controls that function effectively with basic ERP, spreadsheets, barcode scanning, or even manual boards include zonal demarcation, high-visibility floor channeling, serialized status indicators, color-coded hold labels, location IDs, visible date-received information, partial-roll tags showing remaining quantity, a daily staging board, an exception log, and cycle-count focus on high-risk zones. These are not workarounds. They are appropriate tools for the scale of operation at which most converting facilities actually operate.
Visual controls will not eliminate damage or inventory errors on their own. They reduce ambiguity — and ambiguity is what turns “available” into “not actually ready.” The principles covered in this guide — zoning, rotation, slotting, staging — all become practically implementable once physical cues replace reliance on memory. A planner should be able to see whether a roll can feed the next job. A clamp truck operator should be able to see whether a roll is available, partial, held, or staged. A supervisor should be able to see where the process is breaking. A facility engineered for intuitive workflow minimizes cognitive load and reduces the probability of variance-driven errors inherent in memory-reliant systems.
Define the Metrics That Show Whether Storage Control Is Working
Improvement without measurement drifts back toward old habits. The operational signals that connect storage decisions to production outcomes are specific and trackable, even without sophisticated software.
Useful metrics include roll picking time, number of re-handles before production, damage found at picking, damage found at staging, inventory location accuracy, aged rolls by grade, hold inventory aging, partial rolls returned to usable stock, production delays caused by material not being ready, and emergency picks or last-minute grade substitutions. Each of these reflects a real connection between how rolls are stored and how reliably the line gets what it needs.
The diagnostic value of these metrics goes beyond the numbers themselves. High re-handle counts point to slotting problems. Aged stock points to weak rotation discipline. Repeated emergency picks point to staging or planning gaps. Damage found at picking may trace back to storage access, handling routes, or exception control. The goal is not to chase external benchmarks. Baseline the current state, set internal improvement targets, and track whether changes to zones, slotting, rotation, and staging produce measurable results over time. A facility that does not know its current damage-at-picking rate has no way to confirm whether a layout change improved anything.
Questions to Ask Before Changing the Layout
Before redesigning storage areas, the most productive step is to work through a structured set of questions with warehouse, production, and planning teams together. Which rolls move most often? Which grades or widths are most often needed urgently? Which rolls are most vulnerable to handling damage? Where do partially used rolls go today? How are hold or damaged rolls separated from available stock? How often are rolls moved more than once before reaching production? Which locations create awkward or unsafe forklift movement? How do planners know whether a roll is actually usable and accessible? What staging window balances both production readiness and roll condition? Where do location errors most often start?
The answers will point to the highest-impact changes. Those changes are often simpler and less expensive than a full warehouse rebuild — and they are far more likely to be adopted consistently because the people who work in the space helped identify them. The answers should shape the layout. Not a habit. Not empty space. Not whoever found the room first.
The roll that was buried, torn, and mislocated at the start of this guide does not have to stay that way. With status-based zones, usability-first rotation, disciplined staging, and visible controls, the same warehouse becomes one where the right roll reaches the converting line on time, in the right condition, without extra handling.
Store by status. Rotate by usability. Stage by sequence. Keep production ready.
Looking for kraft paper jumbo roll sellers or kraft paper makers?Browse kraft paper jumbo rolls, submit an RFQ to receive quotes directly from manufacturers and exporters, or explore the PaperIndex Academy for more operational guides.
Frequently Asked Questions
What is the best way to organise kraft paper parent roll storage?
Organise rolls by a combination of movement frequency, grade or specification, production priority, roll status, and damage risk. Avoid storing rolls only by where space is available — space-first layouts lead to buried inventory and status confusion.
Should kraft paper rolls always follow FIFO?
FIFO is a useful baseline, but parent roll rotation should also account for usability. A roll that is older but damaged, moisture-exposed, or under inspection should not be treated as normal available stock. The more reliable principle is the oldest usable roll first.
How can warehouses prevent older paper rolls from being forgotten?
Use visible date-received information, location accuracy checks, aged inventory reports, and a defined review process for slow-moving, partial, and hold-status rolls. When age is not visible at a glance, it tends to go unnoticed until it becomes a problem.
What is the difference between reserve storage and production staging?
Reserve storage holds rolls that are available but not immediately needed. Production staging holds rolls released for a specific upcoming job and should be managed within a controlled window to reduce damage exposure and unnecessary movement.
How do storage location errors cause roll damage?
Location errors create extra searching, rushed movement, blocked access, temporary placements, and unnecessary re-handling. Each added movement increases the chance of clamp contact, wrapper damage, edge compression, and accidental exposure.
How should damaged or questionable rolls be handled?
They should be separated from normal available inventory immediately, labelled with a clear status, inspected according to internal quality procedures, and assigned a defined path — repair, downgrade, return to supplier, or scrap — before any reuse decision is made.
What metrics should a plant track to improve parent roll storage?
Useful metrics include picking time, roll re-handles per job, location accuracy, damage found during picking and staging, aged inventory by grade, hold inventory aging, and production delays caused by material availability. Baseline these before making layout changes to confirm what improves.
Can smaller plants improve roll storage without a full WMS?
Yes. Smaller facilities can achieve meaningful control with marked zones, location IDs, physical status tags, a staging board, partial-roll labels, and disciplined exception logging. For plants also managing tight supplier terms, the inventory trap guide for small paper converters explains how right-sizing orders reduces both the cash burden and the storage complexity that smaller operations face. Visual controls are appropriate tools at this scale — clear behaviour comes before expensive software.
