📌 Key Takeaways
Folding carton damage disputes end when teams document transit conditions before choosing board grades, not after complaints arrive.
- Map the Lane First: Write down stacking heights, humidity levels, and handling steps before picking a folding carton specification.
- “Standard” Often Means Outdated: A folding carton that worked in your old warehouse may fail in a new 3PL with taller stacks and wetter storage.
- Build an Eight-Point Audit: Check shipping routes, stacking loads, moisture exposure, product weight, past failures, and test methods before sending quotes to suppliers.
- Baselines Kill Blame Games: When everyone agrees on the stress the folding carton must survive, finger-pointing after damage becomes a fact-check—not a fight.
- Start Small with One Pilot: Pick one product line with known damage problems and run the full audit before expanding company-wide.
When the baseline is clear, accountability becomes measurable.
Operations, quality, and procurement teams sourcing folding cartons for e-commerce or retail will find a ready-to-use audit framework here, preparing them for the detailed methodology that follows.
~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~
Consider a hypothetical scenario: A shipment of folding cartons arrives at a fulfillment center. The corners are crushed. The supplier insists the folding cartons met specifications. The 3PL (third-party logistics) partner maintains that handling followed standard protocols. The quality team documents the damage but cannot explain why it happened. Three parties, zero accountability, and no objective baseline to settle the dispute.
This operational disconnect is best illustrated by a common scenario. An operations manager at a growing direct-to-consumer brand receives a damage alert on a Monday morning. A retail replenishment order and a direct-to-consumer run used the same “standard” folding carton, but the 3PL stored the retail pallets three layers high over a humid weekend. By the time the folding cartons reach the next node, lower layers are bowed, corners are crushed, and every party has a partial defense. The failure did not begin at the complaint stage. It began earlier, when nobody documented the real transit environment before the board grade was approved.
This pattern repeats across omnichannel supply chains because the root cause is rarely a defective folding carton or reckless handling. The root cause is a missing planning step.
Folding carton transit planning is the process of mapping real transit stress variables against folding carton structural specifications before final board-grade and award decisions. Think of it like checking the weather and terrain before packing for a long-distance hike. Pack for a sunny afternoon stroll and encounter mountain rain, and the gear fails. The gear was not defective. The planning was incomplete.
A folding carton specified for controlled warehouse-to-store shipment may not survive the compression loads, humidity shifts, and repeated handling events inside a third-party logistics network. When transit reality is never documented, there is no objective way to assign accountability after damage occurs.
This article explains how a Logistics Stress Audit, completed before board-grade selection, prevents the guesswork that turns transit damage into supplier disputes.

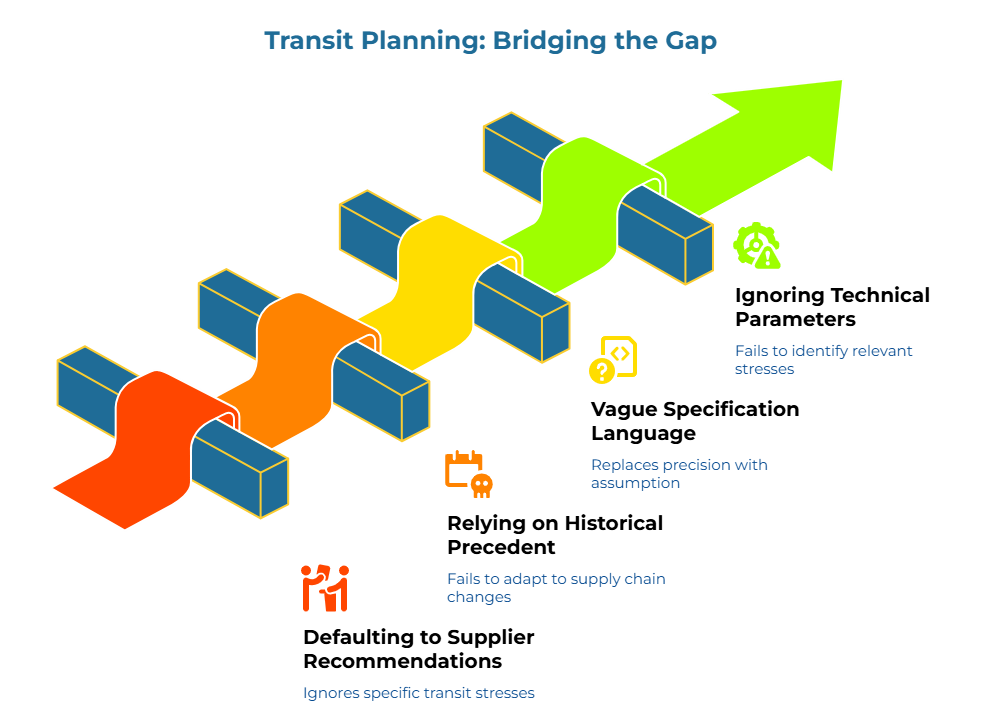

Establishing the Parameters of Transit Planning
Folding carton transit planning is a procurement-planning discipline. It happens before board-grade selection and before supplier award. It is not a packaging test conducted after production or a quality inspection at receiving.
The discipline requires mapping transit stress variables to structural specifications. This requires identifying the actual conditions a folding carton will face during distribution, then selecting the board grade, caliper, moisture resistance, and compression strength to match. The output is a documented baseline that defines what the folding carton must withstand.
Without this planning step, procurement teams often default to supplier recommendations or historical precedent. They reorder what worked before or trust that a supplier understands the application. This approach works until the supply chain changes. A new 3PL partner, a different fulfillment route, or expansion into additional retail channels can introduce stresses the original specification never anticipated.
Transit planning converts operational reality into specification language. Instead of requesting a folding carton that is “strong enough,” the buyer specifies a folding carton that can withstand a defined compression load, a documented moisture exposure window, and a known stacking profile. Precision replaces assumption. Quantifiable parameters supersede anecdotal assessments.
This is where technical language becomes useful rather than intimidating. GSM, COBB, moisture content, burst strength, and compression are not present to make conversations sound more sophisticated. They exist because each one becomes decision-relevant under different stress conditions. A folding carton cannot be chosen well until the team knows which stresses matter most.
That represents the fundamental shift in perspective. Transit damage is not simply “shipping being rough.” In many cases, it is a visible consequence of an invisible planning gap.
Why “Standard” Folding Cartons Fail Once 3PL Reality Enters The Picture
A folding carton performing well in a controlled environment may fail in a complex fulfillment network. The difference is the stress profile, not the folding carton itself.
Multi-layer pallet stacking changes the compression equation. External 3PL environments often stack pallets higher than a manufacturer’s own distribution center. Bottom-layer folding cartons bear loads exceeding what standard designs accommodate. If edge crush test values or compression strength were specified for lighter stacking configurations, structural failure becomes predictable under real-world conditions.
Environmental variability compounds the problem. Third-party facilities may lack the climate control of a brand’s internal warehouse. Temperature swings and humidity fluctuations alter board moisture content. Higher moisture weakens compression resistance. A folding carton testing well in laboratory conditions may soften in a humid cross-dock facility, losing the structural integrity the specification assumed.
Omnichannel complexity multiplies exposure. A single SKU family may ship through multiple channels simultaneously. Some units move directly to retail. Others flow through e-commerce fulfillment. Still others enter subscription commerce pipelines. Each channel presents different handling events, dwell times, and stacking realities. A one-size-fits-all specification ignores these differences.
The result is a specification that passes internal review but fails in the field. Absent a documented baseline, the buyer cannot distinguish between a manufacturing deviation and a specification-environment mismatch. This ambiguity invites finger-pointing.
The commodity mindset becomes expensive in this context. A folding carton can look interchangeable on paper while behaving very differently in the field. The lowest price-per-unit may appear attractive, yet the landed cost picture changes quickly when transit failures, returns, repacking, and review time compound.

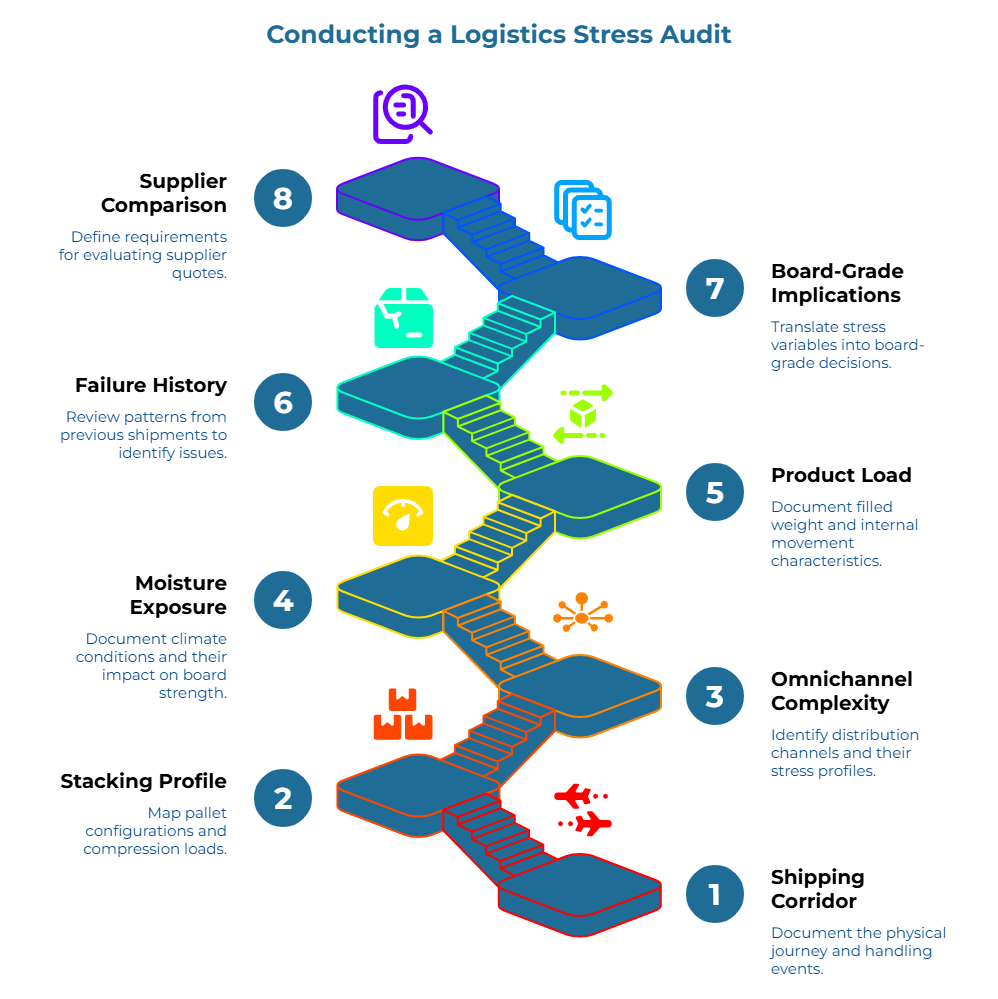

The Logistics Stress Audit: What To Map Before Final Board-Grade Selection
A Logistics Stress Audit is a structured review of transit conditions affecting folding carton performance. It establishes a verified performance datum linking structural specifications to environmental stressors. The audit answers four questions: What transit reality are we designing for? What stacking and handling stress will the folding carton face? Which structural variables become non-negotiable? What must be documented before supplier comparison?
The audit covers eight areas.
1. Shipping corridor and handling environment. Document the physical journey. Identify origin and destination points. Note handling events between production and final placement. Determine whether shipments pass through external 3PL facilities, cross-dock operations, or retailer distribution centers. Record equipment types at each node and flag known rough-handling points in the network. This mapping reveals how many times the folding carton will be loaded, unloaded, and repositioned before reaching its destination.
2. Stacking and compression profile. Map pallet stacking configurations. Record layer counts in typical and maximum scenarios. Calculate expected compression loads on bottom-layer folding cartons. Consider whether mixed-SKU pallets create uneven load distribution. This information directly affects compression strength requirements. ISO 12048 provides standardized methods for compression and stacking tests on complete, filled transport packages. ASTM D4169 offers a framework for performance testing of shipping containers in representative distribution environments. Referencing established test methods anchors specifications to repeatable measurement practices.
3. Omnichannel node complexity. Identify distribution channels the folding carton will serve. A SKU shipping to retail stores, direct-to-consumer fulfillment centers, and subscription boxes faces three distinct stress profiles. Each channel may present different dwell times, stacking practices, and environmental conditions. If a single specification must serve multiple channels, design for the most demanding one. Alternatively, channel-specific specifications may prove more practical. For e-commerce fulfillment specifically, standards such as ISTA 3A or the ISTA 6-Series provide research-based test procedures for packaged products moving through retailer fulfillment networks and parcel delivery systems to end consumers. This standard validates that e-commerce distribution creates distinct hazard environments requiring dedicated consideration.
4. Moisture and environmental exposure. Document climate conditions. Note temperature and humidity ranges at storage locations, cross-dock facilities, and transit vehicles. Identify whether shipments pass through regions with significant seasonal variation. Moisture directly affects board strength. Higher humidity increases moisture content in paperboard, reducing compression resistance. Specifications should include acceptable moisture content ranges. Where relevant, COBB values indicate water absorptiveness. TAPPI T 441 describes the standard Cobb test determining water absorption in sized paper, paperboard, and corrugated fiberboard under standardized conditions. For guidance on interpreting these specifications, see Understanding Cobb values and tolerances in folding carton packaging: a simple guide for non-engineers.
5. Product and pack load. Document the filled weight, internal movement characteristics, insert design, and closure method. Internal load changes how external stress is transmitted through the folding carton structure. A heavy product shifting during transit creates different failure modes than a lightweight item held firmly by inserts. This information affects geometry decisions, closure choice, and the relative importance of burst versus compression strength.
6. Failure history. Review patterns from previous shipments. Document corner crush incidents, panel bowing, seam failures, print rub, and collapse patterns. Repeated symptoms reveal missing assumptions in current specifications. A history of corner crush on lower-layer folding cartons points toward compression and stacking issues. Recurring seam failures suggest adhesive or structural problems under specific conditions. This review should trigger baseline reassessment before any reorder or board change.
7. Board-grade implications. Translate documented stress variables into board-grade decisions. Consider how GSM (grammage), caliper, burst strength, and compression resistance relate to identified transit stresses. These specifications become particularly important when sourcing from packaging paper suppliers across different origins. If the audit reveals high humidity exposure combined with multi-layer stacking, the specification may require a minimum COBB value, a defined moisture content window, and a compression strength floor. Generic board-grade names alone cannot capture these requirements. Named tolerances and test methods provide the precision needed for vendor verification and RFQ normalization.
8. Supplier comparison package. Define the grade target, tolerances, named test methods, and pass/fail rules that will govern quote evaluation. Quotes are only comparable when the baseline is comparable. Buyers can submit RFQ & receive quotes free once these specifications are documented. This documentation ensures all suppliers respond to identical requirements, eliminating the ambiguity that creates post-award disputes.
The audit output becomes a set of measurable requirements written into the RFQ. For structuring those requirements, see folding carton baseline packaging parameter checklist: how to structure your first RFQ clearly.
How Objective Performance Baselines Resolve Liability Friction
When folding cartons fail in transit, the immediate question is accountability. Without documented performance baselines, that question has no objective answer. The supplier points to shipping conditions. The logistics partner points to folding carton weakness. The buyer mediates a dispute neither party can resolve definitively.
Documented baselines change this dynamic. If the RFQ specified compression strength requirements based on documented stacking conditions, and the supplier delivered folding cartons meeting those requirements, and failure still occurred, the baseline data points toward a gap in the transit assessment rather than supplier defect. Conversely, if delivered folding cartons did not meet the documented specification, accountability becomes clear.
The purpose is not building cases against suppliers. The purpose is removing ambiguity. Ambiguity creates friction. Friction slows resolution. Friction damages relationships. Documented baselines allow all parties to work from identical facts, converting subjective blame into measurable performance expectations.
A credible supplier usually wants a clearer baseline because it separates a true manufacturing deviation from a buyer-side planning gap, a changed lane, or a downstream handling shift. Objective expectations protect both sides from lazy guesswork.
For a framework on how standardized RFQ parameters reduce post-award disputes, see create flawless folding carton RFQs: stop supplier finger-pointing with standardized parameters. When tolerance failures go unaddressed, costs accumulate across multiple budgets. For perspective on these downstream impacts, see the price of misalignment in folding carton: quantifying the impact of tolerance failures.
Planning-First Procurement: How Operations, Quality, And Procurement Should Divide The Work
A Logistics Stress Audit requires cross-functional input. No single team possesses all information needed to document transit reality and translate it into folding carton specifications.
Operations owns the transit map. Supply chain and logistics teams know shipping corridors, 3PL partners, stacking configurations, and environmental conditions at each node. Their role is documenting what actually happens to folding cartons between production and final placement. This includes handling reality, 3PL stacking behavior, returns flow, warehouse dwell time, and the difference between the documented process and the messy real one.
Quality owns the translation. Quality and packaging engineering teams convert transit stress data into measurable specification language. They determine applicable test methods, appropriate tolerance ranges, and enforceable requirement structures. Quality turns observation into technical control.
Procurement owns the baseline documentation. Procurement ensures audit findings appear in RFQ documents, supplier responses are evaluated against documented requirements, and award decisions reflect documented baselines rather than subjective impressions. This documentation also supports landed cost analysis by ensuring quotes reflect identical performance requirements. Procurement does not create the baseline alone; it protects it.
Timing is the critical coordination point. The Logistics Stress Audit must conclude before RFQ issuance. Operations documenting transit conditions after board-grade selection cannot inform the specification. Quality defining requirements without Operations input may produce requirements disconnected from actual stress. Procurement issuing RFQs before baseline documentation loses the opportunity to prevent finger-pointing before it begins.
The sequence matters: Operations maps the real environment. Quality translates it into structural and testing requirements. Procurement issues a comparable sourcing package. All three functions sign off before award or board change.
A Practical First Step: Pilot The Framework On One SKU Family
Full-scale implementation is not required to begin. A more practical starting point is piloting the approach on a single SKU family or shipping lane experiencing transit damage or supplier disputes.
Select a product line with documented problems. A good pilot candidate usually has one or more of these signals: repeated corner crush, unexplained return rate linked to packaging condition, disputes between the 3PL and the supplier, visible lower-layer deformation on pallets, or a planned board change that feels risky because the lane is still poorly defined.
Convene Operations, Quality, and Procurement for a single working session. Document the transit corridor, stacking conditions, environmental exposure, and current specifications. Compare documented transit reality against existing requirements. Identify gaps. Determine whether current board grade, compression strength, and moisture resistance align with actual stress profiles.
Use findings to revise specifications for the next procurement cycle. Measure whether revisions reduce damage rates or dispute frequency. If the pilot produces measurable improvement, expand the framework to additional SKU families.
That first pilot has one job. It must answer whether the real problem is supplier execution, transit mismatch, specification drift, or a mix of all three. Once that distinction becomes visible, the work gets easier. The team is no longer debating a damaged folding carton in the abstract but examining a specific system with named stresses and named decisions.
This approach limits risk while producing a documented example building internal support for systematic adoption.
Frequently Asked Questions
Is transit damage always a supplier problem?
Not necessarily. Transit damage can result from folding carton defects, but it can also result from transit conditions exceeding what the specification was designed to handle. If the specification was not calibrated to actual transit stress, damage may reflect a planning gap rather than supplier defect. Documented baselines help distinguish between these scenarios. A supplier can contribute to failure, but transit damage is not automatic proof of supplier fault.
What should be documented before choosing board grade?
Document the shipping corridor, handling events, stacking configurations, pallet heights, environmental conditions, distribution channels the folding carton will serve, product and pack load characteristics, failure history from previous shipments, and the supplier comparison criteria including named test methods and pass/fail rules. This information forms the Logistics Stress Audit. Audit output should drive board-grade selection, not the reverse.
Can standard folding cartons survive 3PL stacking?
Survival depends on how “standard” is defined and how the 3PL environment compares to conditions the folding carton was designed for. A specification based on direct-to-retailer shipment may not account for higher stacking, longer dwell times, or variable humidity in third-party fulfillment networks. A standard folding carton built for one environment can fail quickly in a denser or more variable one. Performance depends on specification-to-stress alignment.
What is the first sign that transit planning is missing?
Recurring disputes where no party produces objective evidence supporting their position. If folding carton damage triggers cycles of supplier blame and logistics blame without clear resolution, the underlying cause is often a missing baseline. When teams cannot point to a documented baseline for stacking, moisture exposure, handling assumptions, and structural requirements, transit planning is probably missing. Specifications anchored to documented transit conditions make disputes resolvable because all parties compare performance against requirements.
Next steps
Folding carton transit planning shifts accountability from post-failure blame to pre-award documentation. The Logistics Stress Audit provides a structured method for capturing transit reality and translating it into specification language that enables vendor verification and prevents ambiguity.
The path out of the guesswork gap is not dramatic. It is disciplined. Start with the lane. Name the stresses. Tie them to structural choices. Document the baseline before the next dispute has a chance to begin. When ready to apply these principles, buyers can connect with suppliers who meet their documented specifications.
For additional methodology guides on folding carton procurement, RFQ structuring, and specification alignment, explore the PaperIndex Academy. For related content on standardized parameters and documentation practices, see create flawless folding carton RFQs: stop supplier finger-pointing with standardized parameters, understanding cobb values and tolerances in folding carton packaging: a simple guide for non-engineers, and folding carton baseline packaging parameter checklist: how to structure your first RFQ clearly.
Disclaimer:
This article is educational. Any scenarios or numbers not tied to a cited source are illustrative or hypothetical.
