Translating Physical Failures to Corrugated Box Specs: A Forensics Guide for Packaging Engineers

📌 Key Takeaways

Physical damage on corrugated packaging is a readable signal that translates directly into enforceable specification changes when diagnosed systematically.

Classify Before You Blame: A consistent failure taxonomy—compression, puncture, seam, moisture, abrasion—transforms vague damage reports into diagnosable mechanisms.
Rule Out Confounders First: Pallet overhang, clamp handling, or non-representative samples can mimic material failures, so isolation precedes specification changes.
Name the Test Method: Citing ISO 3037 for ECT or ISO 2759 for burst transforms diagnosis from opinion into contractual language procurement can enforce.
Update Specs With Evidence Packs: A spec delta note linking symptom, mechanism, and verification method prevents the same failure from recurring.
Close the Governance Loop: Qualifying revised specs, verifying at receipt, and documenting exceptions creates institutional memory that stops repeat investigations.

Proof beats debate—a spec sheet with named test methods gives procurement something enforceable.

Packaging engineers and procurement managers responsible for heavy-duty corrugated sourcing will gain a repeatable forensic framework here, preparing them for the detailed diagnostic flowcharts and mapping tables that follow.

~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~

The box arrived crushed. Again.

You stare at the collapsed corner, the bowed panel, the unmistakable signs of compression failure—and the finger-pointing begins. Was it the carrier? The pallet pattern? The corrugated box supplier cutting corners on board weight?

A damaged box is not a mystery. It’s a readable signal: classify the failure mode, map it to the dominant physics, confirm with a named test method, then update the spec sheet so it can’t recur. Effective packaging forensics identifies the physical triggers of failure, transforming anecdotal reports of damage into objective specification governance.

This guide provides a repeatable test method for translating visible damage on heavy-duty industrial packaging into measurable specs and named test methods.

The Six-Step Forensic Process

Photograph and measure the symptom—preserve a representative sample with lot IDs and conditioning context
Classify the failure mode (compression, puncture, seam, moisture, abrasion)
Identify the dominant force or mechanism
Map the mechanism to spec lever(s)
Confirm with a named test method and note conditioning requirements
Update the specification plus receiving and qualification checks

What Is Packaging Failure Forensics?

Packaging failure forensics translates observable damage into measurable parameters and verification test methods—so the next production run is governed by specs, not guesses.

Why does this matter? Faster root-cause identification means fewer disputes and better spec governance. When you can demonstrate that bulging sides indicate a failure of stacking strength (BCT), or that punctures indicate a failure of linerboard burst strength (Mullen), the conversation shifts from blame to corrective action. Identifying the failure mode is the first step to correcting the specification.

Evidence Capture and Preservation

The first minutes after discovering damage determine whether you’ll have a defensible case or merely an opinion. Evidence that cannot be interpreted consistently cannot be used to improve specs.

What to record:

Photographs from multiple angles showing damage in context, including close-ups and wider shots of pallet position
Measurements of the damaged area—depth of crush or penetration, distance from edges
Orientation details: which panel failed, whether damage concentrated at bottom tier
Pallet pattern: box positioning, any overhang or gaps between stacks
Environmental indicators: signs of moisture exposure, temperature stress, or extended dwell time

Preserve a representative sample. Pull at least one damaged unit and one undamaged unit from the same lot. Note lot ID, production date, and conditioning context.

The common mistake is logging “crushed” without geometry and location. That doesn’t tell engineering anything useful. “Top-load compression failure, panel bow on the long side, bottom tier, extended dwell in uncontrolled storage” tells a story that maps to specifications.

Conditioning matters here: a box that passes in a lab may fail in the field if moisture exposure or storage conditions shift the material response. Conditioning should be documented for any confirmatory testing.

Failure Mode Classification

Before translating damage to specs, you need a consistent taxonomy. Not all damage looks the same, and not all damage comes from the same cause.

Failure Mode	Visual Indicators	Force Implicated
Bulging sides / panel bow	Outward curve on long panels; box wider at middle than edges	Top-load compression
Corner crush /edge collapse	Crumpled corners; vertical creases radiating from corners	Point-load compression or impact
Panel collapse	Inward buckling of a full panel; diagonal crease lines	Compression exceeding column strength
Puncture / penetration	Hole or tear through linerboard; exposed fluting	Impact or abrasion from sharp contact
Seam or joint failure	Separation at glue lines; flaps pulling apart	Shear stress or adhesive failure
Moisture softening / delamination	Soft board; layers separating; wavy panels	Moisture compromising fiber bonds
Abrasion / scuff damage	Surface wear; repeated contact marks; weakened outer liner	Handling contact and relative motion

These mappings are directional, not absolute. A symptom suggests a shortlist of mechanisms; confirmatory testing and confounder checks come next.

Symptom-to-Mechanism Translation

Here’s where diagnosis requires care. The symptom might point to an obvious mechanism, but you need to rule out confounders that can mimic or amplify the failure.

Confounders to eliminate before concluding:

Pallet overhang causes boxes to lose edge support and fail at lower loads than spec predicts. Pallet gaps create unsupported spans that concentrate stress. Clamp handling can crush boxes even when stacking strength is adequate. A mis-sized box—too large for its contents—can’t develop proper column strength. Poor unit-load containment allows shifting that creates point loads and abrasion. Stacking beyond the designed scenario introduces creep effects—time-under-load matters, and performance varies accordingly. Non-representative samples can mislead: a single damaged unit treated as systemic failure may not reflect actual process capability. Atypical conditioning matters too: boards tested at standard laboratory conditions perform differently than boards exposed to high humidity for weeks.

The goal isn’t assigning blame. It’s isolating variables. If failure traces to handling or environmental conditions outside the spec’s assumptions, that’s still useful—it means the spec’s assumptions need updating. Confounders do not excuse a material issue; they clarify whether the spec should address robustness, the process should address handling, or both.

For deeper context on why damage typically traces to specification gaps rather than logistics alone, see why corrugated box damage is usually a sourcing/spec problem—not a logistics problem.

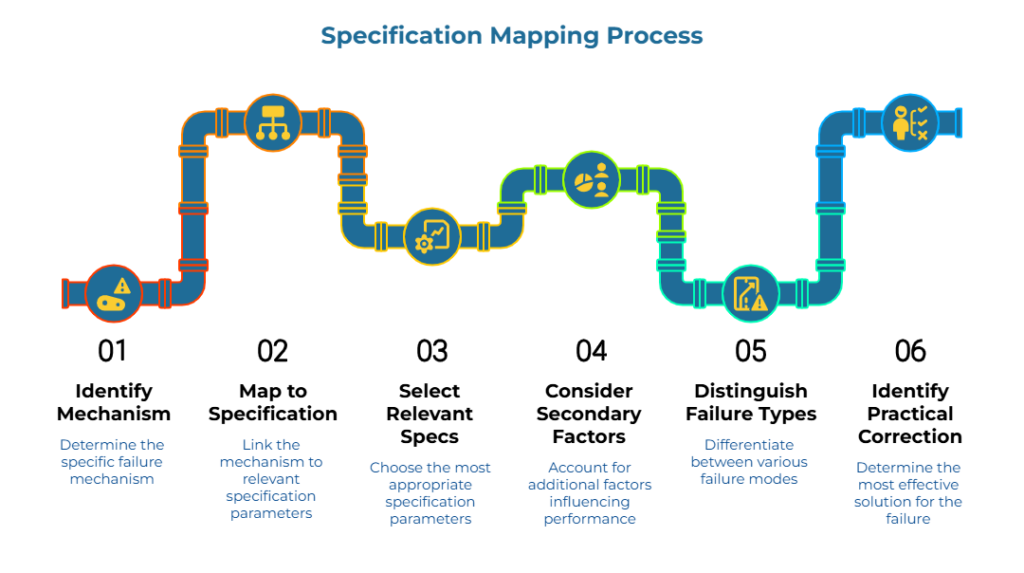

Specification Mapping

Once the mechanism is isolated, identify which specification parameters govern that performance attribute. This is the translation step: move from narrative (“it crushed”) to a parameter set that can be specified, tested, and enforced.

Core mechanism-to-spec mapping:

Top-load compression failure—evidenced by bulging sides or panel bow—points to box compression performance. The relevant spec levers include BCT targets, ECT of the combined board, and flute profile selection. Secondary considerations include safety factors applied to static versus dynamic loads and dwell time assumptions.

Puncture or penetration technically implicates Puncture Resistance (ISO 3036), though in common specification practice, this is often managed via Burst Strength (Mullen) and liner robustness. The primary commercial lever remains the Mullen burst of the kraft linerboard, though forensic analysis should distinguish between tensile burst and dynamic puncture energy.

Corner or edge collapse implicates ECT, board caliper, and flute profile rigidity. Die-cut versus slotted design and score quality affect performance here.

Seam or joint failure points to adhesive specification, joint overlap width, and flap design. Moisture resistance of the adhesive matters, as do storage humidity assumptions.

Moisture-related softening involves Cobb value, board moisture content at shipment, and sizing treatment. Wax coatings or moisture barrier treatments may be relevant.

Abrasion or scuff damage leading to weakness implicates unit-load containment, surface durability decisions, and handling protocols. When surface wear precedes puncture or collapse, the root cause may be relative motion rather than material deficiency.

A single failure mode can implicate multiple spec levers. Your job is identifying which lever offers the most practical correction. For guidance on how ECT and burst strength serve different protective functions, see why burst strength isn’t enough (ECT, flute profiles, and stacking performance).

Verification and Test Standards

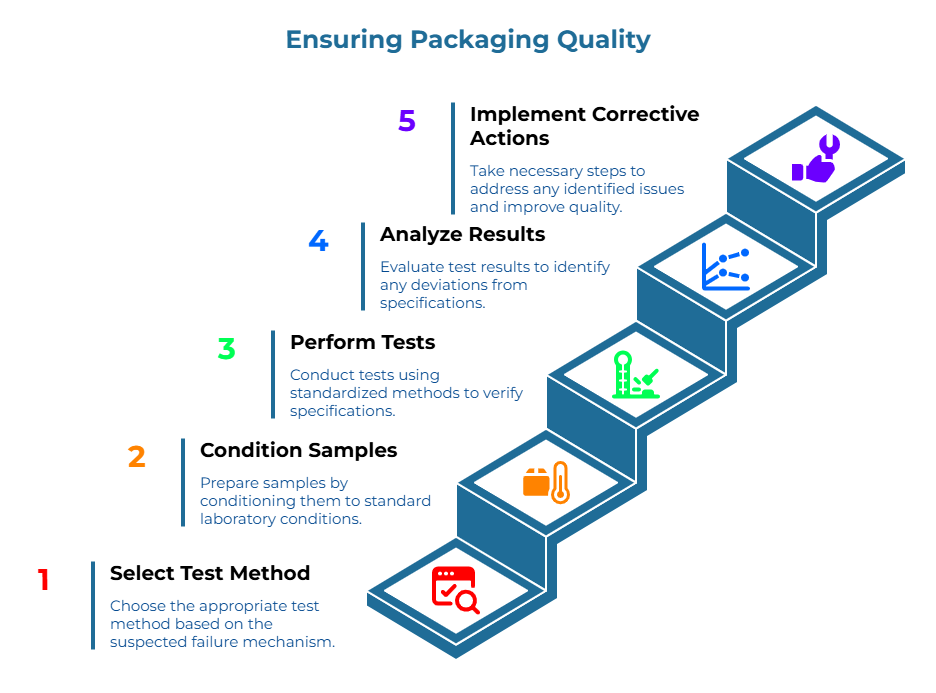

“Ensuring Packaging Quality.” A 3D staircase of five steps with icons shows the QA sequence: 1) choose the appropriate test method for the suspected failure; 2) condition samples to standard lab settings; 3) run standardized tests; 4) analyze results for deviations; 5) take corrective actions.

Now you move from hypothesis to verification. Each spec lever has a corresponding test method, and citing that method by name transforms diagnosis from opinion into enforceable specification. The principle here is method-first, not vendor-first: standards remove ambiguity and create comparability.

Primary test methods by spec lever:

Spec Lever	Test Method	Standard
Edgewise Crush Resistance (ECT)	Edge crush test on combined board	ISO 3037 [1]
Box Compression Strength (BCT)	Compression test of complete packages	ISO 12048 [2]
Burst Strength	Mullen burst test	ISO 2759 [3]
Board Thickness / Caliper	Thickness measurement	ISO 3034 [4]
Simulation Testing	Performance testing under simulated transit conditions	ISTA procedures [5]

Conditioning and sampling considerations: Test results are comparable only when conditioning matches. Standard laboratory conditioning (23°C ± 1°C, 50% ± 2% RH, creates a baseline, typically requiring 24 to 48 hours until equilibrium is reached, particularly for heavy-duty or double-wall grades. If failure occurred after tropical transit, testing at elevated humidity may be necessary to understand real-world performance. Sample size matters—multiple samples from the same lot reveal process capability and variation, while a single result is just a data point.

The specific test selection depends on context. The right confirmation plan varies based on whether the suspected mechanism is compression, penetration, moisture-driven loss of stiffness, or closure failure. The role of standards is to remove ambiguity, not to prescribe a single regimen for all scenarios.

Establishing a dock verification protocol catches specification drift before damaged boxes reach production. For a practical receiving inspection workflow, see how to verify corrugated box quality at the dock.

Specification Governance and Enforcement

Diagnosis without action is documentation. The goal is a spec change that procurement can hold suppliers accountable to—specification over negotiation.

Structure of a spec delta note:

Element	Content
Symptom observed	Panel bow on bottom-tier boxes after extended dwell
Mechanism identified	Top-load compression exceeding BCT under extended storage
Spec lever change	Increase ECT target; revise safety factor (specific values per application)
Verification requirement	Supplier to provide ECT certification per ISO 3037 with each lot
Conditioning note	Testing to assume elevated humidity if shipments destined for humid climates

When revising ECT targets, packaging engineers often need to upgrade the corrugating medium specification alongside linerboard changes, as both components contribute to edge crush performance.

What the updated spec should include:

Target value with explicit tolerance. Named test method with standard reference. Conditioning requirements if different from standard laboratory conditions. Sampling protocol specifying number of samples and acceptance criteria. Required report fields including lot ID, test date, and equipment calibration date.

Requiring suppliers to report results with test method names, units, and test conditions shifts disputes from interpretation (“strong enough”) to evidence (“tested to X under Y”).

For a complete template on structuring enforceable specifications, see how to create a mill spec sheet (step-by-step).

Diagnostic Logic Flow

The following logic flow summarizes the forensic sequence for corrugated boxes. Each branch connects observable damage to the verification path.

The Forensic Logic Sequence: Mapping Symptoms to Technical Verification

The following flowchart enables diagnosis in under 30 seconds when the failure mode is clear. Complex cases with multiple contributing factors require deeper investigation, but the logic remains: symptom leads to mechanism, mechanism leads to spec lever, spec lever leads to test method.
