📌 Key Takeaways
A new kraft paper roll earns production approval only when real machine data — not just a supplier spec sheet — proves it can run.
- Spec Sheets Don’t Equal Shop-Floor Proof: A roll can pass every lab test and still cause web breaks, dust, or speed loss once it hits the line.
- Inspect the Roll Before You Judge the Grade: Dents, edge cracks, or crushed cores from rough handling can ruin a trial — blame the damage, not the paper.
- Record Everything During the Trial: Log speed, breaks, waste, settings changes, and cleanup time so the approval decision rests on numbers, not gut feel.
- Operator Feedback Is Evidence, Not Complaint: “Three breaks and two tension resets” is data a buyer, supplier, and QA lead can act on together.
- Approve in Three Tiers: Pass it, pass it with clear limits, or hold it with documented proof — never approve for all lines after testing on just one.
Evidence-led approval protects output, not just material cost.
Production managers and converting-line supervisors evaluating new kraft paper grades will gain a repeatable approval framework here, guiding them into the detailed checklist that follows.
~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~
The datasheet looks fine on paper.
Procurement has forwarded the supplier’s technical sheet for a new kraft paper grade, and the numbers — grammage, tensile, burst — sit close enough to the current approved material. The cost case is reasonable. Availability is better. Someone from purchasing has already asked when production can schedule a trial.
But a parent roll that checks every specification box can still cause web breaks at the splicing station, dust buildup on the print cylinders, or edge cracks that do not surface until the third hour of a run. Will this roll hold tension at full speed, or will the line crawl through three shifts of babysitting? When grade approval is treated as a purchasing exercise rather than a production-evidence decision, production absorbs the consequences — even though the change was initiated elsewhere.
A structured kraft paper grade checklist — built around runnability, waste, stoppage risk, and operator feedback — turns that scattered approval into a repeatable decision with documented evidence. The goal: determine whether a new parent roll is ready for full production, needs a controlled trial with conditions, or should be rejected and escalated before it reaches the line.
Why a Production Manager’s Checklist Looks Different
Buyers evaluate kraft paper by price, lead time, and supplier terms. Engineers compare test certificates against internal specifications. Production managers answer a different question: will this parent roll run at target speed, with normal settings, acceptable waste, and no unplanned stoppages?
That distinction matters because a grade can satisfy every purchasing and engineering criterion and still fail operationally. Whether the paper behaves consistently through unwinding, tensioning, converting, sealing, printing, coating, laminating, bag-making, wrapping, slitting, or rewinding depends on variables that rarely appear on a datasheet: web flatness under tension, edge integrity at speed, dust generation, splice reliability. Hidden costs like waste, rework, and slower throughput can offset procurement savings within a single shift — a pattern documented in our guide, when a cheaper kraft paper becomes more expensive in production.”
A practical scenario makes the point. A parent roll supplier offers a lower-cost roll with similar basis weight. During a short trial, operators report more web breaks and visible edge cracking — symptoms explored in detail in why kraft paper curls, cracks, or wrinkles during conversion along with the buying checks that prevent it. Downtime minutes climb, scrap increases, and the real production cost exceeds the invoice savings. That is a general production principle, not a fixed claim about every grade change — the actual impact depends on the plant’s waste records, downtime model, product mix, and machine sensitivity. The production manager’s job is to make that impact visible before the new grade becomes a routine material.
Pre-Trial Document and Specification Review
The first approval gate happens before the roll reaches the floor — a desk-level review that can prevent days of disruption.
Start with identity confirmation. Verify the grade name, supplier, mill of origin, and production batch against purchase documentation. Then pull the specification comparison side by side — current approved grade versus proposed grade — using the supplier’s technical datasheet and certificate of analysis as primary comparison documents.
Key values to compare: grammage or basis weight, caliper, moisture content, tensile strength in both machine and cross direction, tear resistance, burst strength, porosity, Cobb or absorbency values, surface roughness, and coefficient of friction. For a structured approach to specifying these parameters with named test methods, see TAPPI/ISO in plain English: which test methods to require in your kraft paper RFQ (and why). Use named test methods wherever possible — two values are not truly comparable if they were measured under different assumptions. TAPPI’s paper properties and testing resources cover property areas such as basis weight, caliper, moisture, tensile, tear, burst, roughness, air permeability, porosity, and Cobb testing. ISO 536 remains the current international reference for determining paper and board grammage. ASTM International maintains additional standards covering physical, mechanical, and chemical properties of paper and paperboard packaging materials.
Beyond paper properties, confirm roll specifications: width, outer diameter, core size, winding direction, splice limits, packaging method, and storage requirements. The Reel & Core fit checklist provides a machine-readiness preflight covering these dimensions. Ask whether test methods on the supplier’s certificate match those used for the current approved material — a principle explained in How to interpret lab test reports for kraft paper: a procurement-friendly guide. A tensile value tested under different conditioning can appear equivalent when it is not.
If any specification sits outside the current tolerance band, or if test methods do not align, flag the gap before scheduling a trial.
Inspect the Parent Roll Before It Goes on the Line
A roll that passes the desk review can still arrive with physical problems that distort trial results. Separate roll-condition issues from grade-performance issues before drawing conclusions about the paper itself.
- Roll damage: Dents, crushed areas, water marks, torn wrapping. Forklift clamp marks are common and easy to miss under wrap.
- Edge quality: Cracks, waviness, uneven winding, loose outer layers. Edge defects worsen under tension.
- Roll hardness and shape: Soft spots, telescoping, starring, or out-of-round conditions signalling poor winding.
- Core condition: Crushed core, wrong core size, or loose fit that causes wobble on the unwind shaft.
- Splices: Count, marking, positioning, adhesive quality. An unmarked splice mid-roll causes surprise stops.
- Label accuracy: Grade, lot, width, weight, winding direction, and traceability codes must match the certificate of analysis.
- Storage and conditioning: Duration in the warehouse, humidity exposure, and moisture risk from staging conditions. Verifying conditioning requirements against supplier documentation or internal SOPs — how to protect kraft paper parent rolls from warehouse moisture and temperature risks before converting provides a risk-zone audit framework for this step.
A parent roll arrives with edge damage from rough handling. It performs poorly during the trial — web breaks, tension instability, excess trim waste. A systematic receiving workflow that catches these issues is covered in kraft paper jumbo roll quality checklist for small converters: buying criteria that prevent breaks, waste, and downtime. The team blames the grade, but the damage was the variable. The production manager should decide whether to reject, quarantine, trim, or run the roll only under controlled conditions. A pre-converting quality check prevents that misdiagnosis.
Runnability Checklist During the Trial
The trial should show how the roll behaves under real production conditions — not just whether it can move through the machine at a comfortable speed. A short, carefully watched run may help with initial screening, but it should not be treated as full approval unless that matches the product risk and internal quality rules. Structure observations around six areas.
Unwind and tension behaviour. Does the web track cleanly, or wander? Are tension settings close to the approved grade? Watch for flutter, snap, curl, or wrinkling. Frequent manual corrections are an early warning that the roll may behave differently across machines or shifts. Machine OEM documentation can confirm whether observed tension falls within equipment specifications.
Line speed. A new kraft paper grade should be assessed against normal production speed, not only against a comfortable trial speed. If operators slow the line to make the grade work, that is a cost — even if waste stays flat. Record speed achieved and compare to baseline. Slower speed may still be acceptable for a limited application, but it is not equivalent performance.
Breaks and stoppages. Count web breaks, jams, splice-related stops, edge failures, and machine cleanouts. Record both the number and duration. Root cause matters: a break from a paper defect tells a different story than one from a splice. “Two stops” is weak evidence. “Two edge-crack stops totaling 18 minutes at target speed” is evidence a plant manager, QA lead, supplier, and buyer can discuss.
Dusting, linting, and cleanliness. Watch for dust buildup on rollers, blankets, or print surfaces. Dust causes print defects, coating contamination, sealing failures, and increased cleaning frequency. These issues may not stop the line immediately, but they still increase workload and quality risk.
Conversion quality. Inspect the finished product — and match the checks to the process. For bag-making, look at fold behaviour, gusset stability, tear points, and seam performance — defects that often trace to grade mismatch rather than machine settings, as detailed in signs you chose the wrong kraft paper grade for bag conversion and what to check before blaming the machine. For slitting and rewinding, check edge quality, roll build, web stability, and finished-roll defects. For printing, coating, or lamination, check surface consistency, adhesion, cracking, print appearance, and rejected output. Downstream quality issues often surface after the trial window closes, so curl, cracking, or wrinkle defects should be monitored beyond the initial run.
Operator workload. Did the paper require unusual settings, slower threading, extra attention during splicing, or more frequent intervention? A grade that doubles the operator’s manual effort is not an equivalent substitute.
Waste, Stoppage Risk, and Operator Feedback

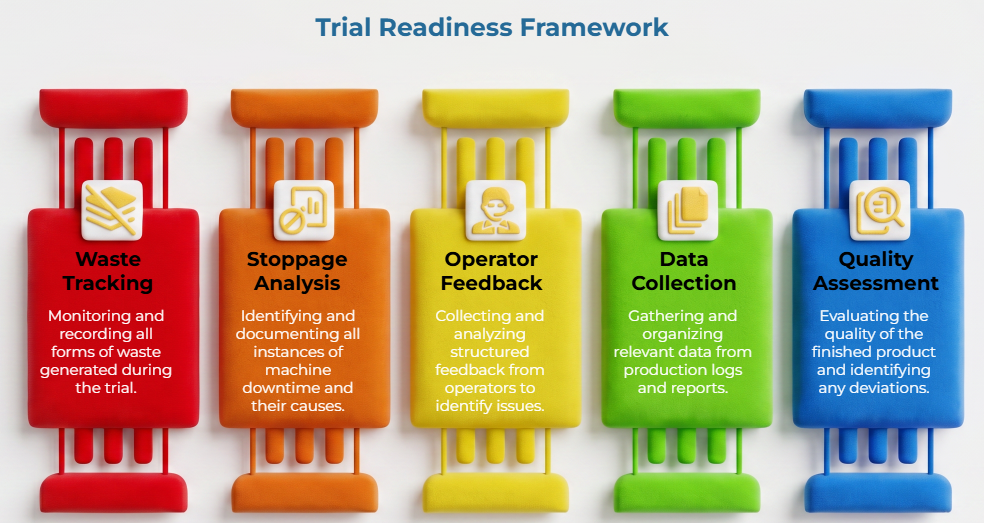

A clean short run does not prove readiness for full production. Track waste and stoppages across the entire trial against baseline data.
Record startup waste, edge trim waste, web breaks, rejected finished product, rework, downtime minutes, cleaning time, roll changeover issues, operator adjustment time, and downstream complaints or quality holds. Internal production logs and trial reports are the most relevant evidence sources. Any cost-of-downtime claims should come from the company’s own data, not estimated averages.
Operator feedback is the differentiation layer — and it should be collected as structured evidence, not dismissed as resistance to change. Ask direct questions after the run:
- Did threading take longer than normal?
- Did the web feel brittle, loose, dusty, or unstable?
- Were tension settings changed?
- Did the roll create curls, wrinkles, cracks, or web wander?
- Did splices run normally?
- Did cleanup take longer?
- Did the finished quality change?
Separate preference from observed behaviour — “this paper feels different” is preference; “this paper broke three times and needed two tension adjustments” is observable data. Capture shift-level differences if the trial spans multiple crews. One experienced operator may compensate for a difficult grade without recording the extra effort; another crew may struggle with the same roll during a normal changeover. That difference matters before approval expands across lines or products. A simple log template keeps feedback consistent:
- Machine / Date / Shift
- Grade / Lot / Roll ID
- Speed achieved
- Settings changed
- Stops observed (count and cause)
- Waste observed (type and estimate)
- Operator comments
- Supervisor recommendation
The Approval Decision

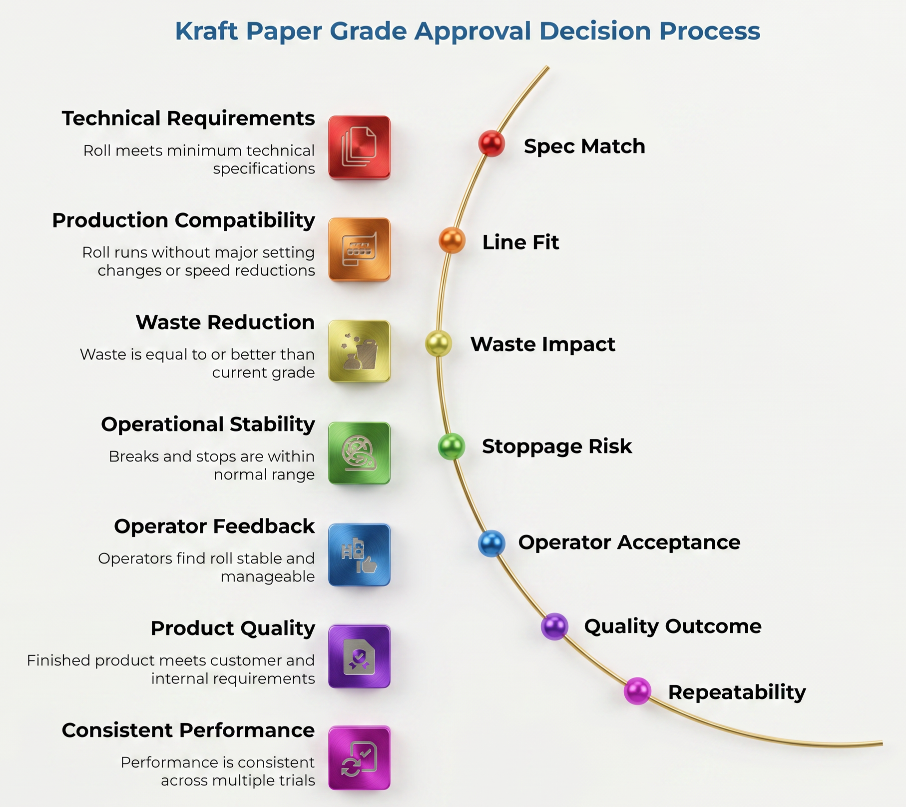

A good approval decision should be easy to explain after the fact. Apply seven criteria to determine the outcome.
- Spec match: Does the roll meet minimum technical requirements?
- Line fit: Does it run without major setting changes or speed reductions?
- Waste impact: Is waste equal to or better than the current grade?
- Stoppage risk: Are breaks and stops within normal range?
- Operator acceptance: Do operators consider it stable and manageable?
- Quality outcome: Does the finished product meet customer and internal requirements?
- Repeatability: Was performance consistent across more than one roll, shift, or batch?
Each criterion points to one of three outcomes:
- Pass: Target speed, normal settings, acceptable waste, manageable operator workload, quality that meets requirements. Approve for scheduling.
- Conditional pass: Acceptable only with documented setting adjustments, limited application scope, supplier correction, or additional trial rolls for batch consistency. Defining the limit clearly — “Approved for Line 2 wrapping jobs up to the documented speed, pending one additional lot trial” is far more useful than “Approved with caution.” A simple approval process for changing kraft paper grades without disrupting production provides a four-step workflow and one-page form for this decision.
- Fail / Hold: Repeated stops, quality failures, excessive waste, or safety concerns. Escalate with documented evidence — roll IDs, batch details, machine data, photos where useful, and clear symptoms. Standardized vendor management protocols and internal quality assurance guidelines, documenting kraft paper problems prior to vendor escalation, support that handoff and ensure all technical evidence is compiled to substantiate the claim.
One successful roll may not prove consistency for higher-risk applications. Approval requirements depend on application risk, customer requirements, machine sensitivity, and internal quality systems. Cross-reference material change approval SOPs to confirm testing requirements. A structured trial protocol removes ambiguity from that decision.
Common Mistakes to Avoid
- Approving based only on a supplier datasheet without a documented trial.
- Running a trial too short to capture normal variation — breaks, changeovers, shift differences.
- Ignoring operator feedback because “the numbers look fine.”
- Failing to record machine settings, making results unrepeatable.
- Comparing rolls tested under different conditions, speeds, or machines without noting the difference.
- Treating price reduction as net savings without accounting for waste, downtime, and quality holds.
- Skipping roll condition inspection — then blaming the grade for handling damage.
- Approving for all applications after testing on only one product line or machine.
Frequently Asked Questions
What should a production manager check before approving a new kraft paper parent roll?
Check specification comparison, physical roll condition, unwind and tension behaviour, line speed, tension stability, web breaks, waste, finished-product quality, and structured operator feedback. The goal is confirming reliable performance under real production conditions — not just datasheet compliance.
Is a supplier datasheet enough to approve a kraft paper grade change?
No. A datasheet is useful for initial screening, but production approval should include a controlled trial with machine observations, waste records, stoppage data, QA review, and structured operator feedback documented against an approved baseline.
How long should a kraft paper trial run be?
Long enough to capture startup, target speed, at least one splice, changeover effects, and finished-product quality checks. Trial length is dictated by the complexity of the conversion process, the tolerance for downstream failure, and established internal validation protocols.
What are signs that a new parent roll may cause runnability problems?
Warning signs include web breaks, edge cracking, tension instability, curl, wrinkles, dusting, inconsistent unwind, frequent manual adjustments, splice failures, increased waste, or running below normal line speed. Any of these warrants a conditional hold.
Who should be involved in approving a new kraft paper grade?
Production, QA, procurement, and process engineering where applicable. Direct questions to each stakeholder — procurement for cost and terms, QA for test data, suppliers for traceability and technical support, operators for on-line behaviour and workload impact.
Approve the Grade Only When the Line Has Proved It
The roll that procurement proposed looked fine on a specification sheet. Now, with documented tension data, waste counts, stoppage records, and operator feedback, the approval decision rests on production evidence — not assumptions.
Production managers protect output, not just material cost. A new kraft paper parent roll earns full approval only when it demonstrates stable runnability, acceptable waste, manageable operator workload, and reliable finished-product quality.
When supplier options need to be reviewed before the next trial, established industry B2B directories or internal procurement databases provide a foundation for sourcing kraft paper parent roll suppliers, though the final validation must be earned through plant-floor performance. The approval decision, however, should still remain evidence-led on the plant floor.
