📌 Key Takeaways
Locking exact specifications before asking for quotes stops “approved” folding cartons from jamming your machines.
- Lock Numbers, Not Words: Replace vague terms like “high quality” with exact ranges—”295–305 GSM” and “≤25 g/m² COBB”—so every supplier quotes the same thing.
- Name the Test Method: The same specification measured two different ways gives two different results, so always state which ISO or TAPPI standard applies.
- Samples Prove Looks, Not Consistency: A handpicked sample shows what a supplier can do at their best, not what they’ll ship across 50,000 folding cartons.
- Check Moisture at Your Dock: Paper shipped at 7% moisture can arrive at 9% after weeks in transit, so test when it reaches you—not when it leaves them.
- Align Teams Before Quotes Go Out: A 15-minute meeting with Procurement, Operations, and Quality creates one shared specification that prevents finger-pointing later.
Same specifications, same test methods, same results—no surprises on the line.
Packaging buyers and procurement managers running automated folding lines will find a ready-to-use framework here, preparing them for the baseline checklist that follows.
~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~
You approved the folding carton sample by sight. The filling machine rejected it by physics.
The sample sat on the conference table—crisp corners, clean print registration, no visible defects. Everyone in the room nodded. The purchase order went out that afternoon.
Nineteen days later, the automated folding line jammed for the sixth time before noon. Folding cartons warped mid-feed. Vacuum grippers lost suction on surfaces that should have been consistent. The shift supervisor pulled a handful of rejects and compared them to the approved sample. They looked the same.
This is where visual quality checks fail. A folding carton can pass every visual inspection while carrying specification variance that only reveals itself under automation stress. The supplier interpreted “standard board grade” one way. The buyer assumed something else. The technical baseline was never locked. And now Operations is troubleshooting a procurement problem while the finger-pointing begins—along with the multi-thousand-dollar costs of emergency freight, avoidable downtime, and damaged-goods fallout across distribution channels.
Specification-True Normalization offers a different approach. Operating as a targeted procurement framework, it is a methodology built on locking tolerances for GSM, COBB, and moisture content before inviting supplier bids—so every quote responds to the same measurable reality. Think of it like ensuring every architect uses the same scale for their blueprints before construction begins. Without that shared baseline, you end up comparing drawings that don’t actually match.
The next supplier round should begin with parameter locking, not sample aesthetics. This guide explains why visual approval creates hidden risk, which technical baselines require explicit tolerance bands, and how to build a normalization workflow that keeps automated lines running.
Mechanical Disparity: Why Visual Inspection Oversimplifies Automation
While human-centric inspection validates aesthetic fidelity, it fails to account for the mechanical variables that dictate line performance.
An automated folding line evaluates folding cartons differently than a quality inspector does. The machine applies precise mechanical force at specific speeds. It expects a consistent caliper for vacuum pickup. It requires predictable stiffness for clean folds. It assumes moisture content will fall within a narrow window that prevents warping under tension.
When a sample passes visual review, appearance gets confirmed. Technical alignment does not. The supplier may have used a different GSM interpretation than the buyer assumed. Moisture content at delivery may differ from the sample that traveled in protective packaging. COBB values may vary across a production run compared to a carefully selected submission.
The disconnect is straightforward: visual checks answer one question, while automated lines ask a different one entirely.
Operations measure success through jam rates, throughput, and rework hours. None of those metrics appear in a sample review meeting. Quality sees inconsistency and non-repeatability. Procurement hears competing explanations from suppliers. Customer teams eventually absorb the consequences through delays, replacements, and negative reviews tied to damaged goods. The folding carton that looked acceptable becomes the folding carton that triggers stoppages—because the underlying specifications were never aligned between buyer and supplier.
This gap between what gets checked and what gets blamed is where supplier disputes originate. For buyers navigating the global paper industry marketplace, understanding this dynamic is essential for building specification documents that prevent disputes before they begin. Failures that appear operational often begin upstream, in procurement processes that approve materials without locking measurable baselines. The supplier delivered what they quoted. The buyer assumed something the RFQ never specified. Both parties acted reasonably based on incomplete alignment.
What Specification-True Normalization Changes

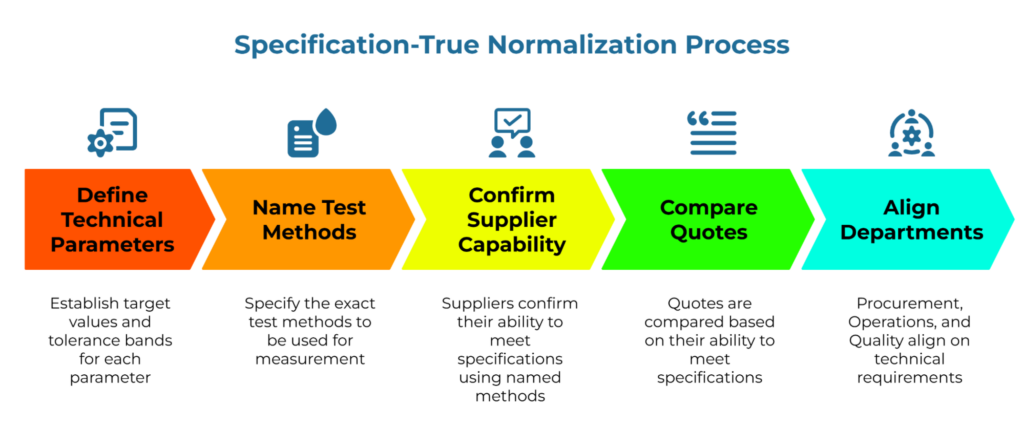

Specification-True Normalization shifts approval from subjective assessment to measurable control. The question changes from “does this sample look acceptable” to “does this supplier’s quote respond to the exact technical parameters the line requires.”
Three elements define the methodology:
Define before comparing. Every technical parameter affecting line performance gets a target value and tolerance band before any supplier receives the RFQ. GSM becomes 300 ±1.7 % (295–305 GSM), not ‘standard weight.” COBB becomes ≤25 g/m² measured via ISO 535 at 60 seconds, not “good moisture resistance.”
Name the test method. Identical specifications can produce different results depending on measurement approach. ISO 536 and TAPPI T 410 both measure basis weight. While global standardization has largely harmonized their baseline conditioning requirements to 23°C and 50% relative humidity (per ISO 187 and TAPPI T 402), specific sampling protocols and laboratory precision reporting can still introduce slight operational variations. A number without a named test method leaves room for interpretation—and interpretation is where variance hides.
Require confirmation before comparison. Each supplier confirms capability to hold defined parameters using named methods before quotes enter comparison. No confirmation, no comparison. This moves the specification conversation before pricing decisions, not after delivery failures.
The shift matters because it changes what suppliers respond to. Visual approval asks for something that looks like what the buyer wants. Specification-True Normalization asks for confirmation that suppliers can repeatedly produce what the buyer has defined. The first invites interpretation. The second removes it.
This functions as a procurement discipline rather than a quality control process. The specification lock happens before quotes arrive, which means Operations and Quality must align with Procurement on technical requirements before the RFQ goes out. That alignment conversation—often skipped—prevents the disputes that emerge later.
The Three Baselines That Must Be Locked Before Comparison
Three technical parameters drive most automated line performance issues in folding carton packaging. Each requires a target value, a tolerance band, and a named test method. Locking one or two while leaving the third undefined creates false confidence. The unlocked parameter becomes the hidden variable that surfaces as unexplained variance.
GSM Is Not Enough on Its Own
Basis weight (GSM) establishes fundamental mass-per-area. It correlates with stiffness, caliper, and structural integrity—but correlation is not guaranteed. Two folding cartons at identical GSM can behave differently under folding stress if fiber composition, moisture content, or manufacturing conditions vary. This variability is why sourcing directly from verified paper manufacturers with documented process controls often yields more consistent results than working through intermediaries who may aggregate material from multiple sources.
The common mistake is specifying GSM without tolerance. “300 GSM” sounds precise but functions as an ambiguity. Does 297 fail? Does 304? Without an explicit ±% band, suppliers decide what variance is acceptable. Their acceptable variance may exceed the line’s tolerance for inconsistency.
Lock GSM with an explicit range and method: 295–305 GSM (target 300, ±1.7%) measured via ISO 536 or TAPPI T 410. This precision is especially critical when sourcing from folding carton suppliers across different regions, where interpretation of ‘standard’ specifications can vary significantly. The named test method matters because strict adherence to conditioning protocols guarantees comparable results. While both TAPPI and ISO standards mandate testing at 50% relative humidity, a sample exposed to 65% RH on the production floor will weigh and perform differently than its lab-certified baseline.
For detailed treatment of how board grade labels create false precision, board grade tolerances explained- securing folding carton specifications across suppliers provides additional context.
COBB Without Tolerance Is Still Ambiguity
COBB values measure water absorption over time, indicating how the board responds to moisture during storage, transit, and production. A folding carton with inadequate COBB performance may arrive looking acceptable but warp within hours of entering a humid environment.
Specifying “low COBB” or “good moisture resistance” recreates the same problem as unqualified GSM. What one mill considers “low” may be borderline for another.
Lock COBB with a ceiling value, test duration, and method: COBB60 ≤25 g/m² per ISO 535 (60-second immersion) or TAPPI T 441. Test duration matters because COBB values change over time—30-second tests produce different results than 120-second tests on identical material.
The goal is not identifying some universal “correct” COBB number. The goal is selecting the value the specific application requires, then enforcing it consistently across all suppliers. Folding cartons spending extended periods in high-humidity distribution environments need COBB requirements reflecting that exposure, not theoretical ideals.
Our article, Understanding Cobb values and tolerances in folding carton packaging: a simple guide for non-engineers offers practical introduction for teams new to COBB specifications.
Moisture Content Is Where “Good-Looking” Folding Cartons Start to Fail
Moisture content drifts most frequently between sample approval and production delivery. A sample produced in climate-controlled conditions, shipped in sealed packaging, and inspected within days of manufacture behaves differently than production folding cartons stored in variable warehouse conditions for weeks.
This is where visual checks fail most completely. Moisture content remains invisible until it manifests as warping, curling, or dimensional instability—by which point folding cartons are already causing line jams.
Lock moisture content as a range with verification timing: 6.5–8.0% moisture content per ISO 287 or TAPPI T 412, tested at receiving. The “at receiving” clause matters because moisture changes during transit. Material shipped at 7% can arrive at 9% after weeks in a container—a reality that underscores why buyers working with paper suppliers across international trade corridors must specify receiving-stage verification rather than origin-only certification. Measuring only at origin measures the wrong condition.
The relationship between GSM and moisture deserves attention—a dynamic that applies across all packaging paper grades, not just folding cartons. Basis weight measurement assumes standard humidity conditions. When moisture content at delivery differs from those conditions, effective GSM the line experiences differs from the specification. Two folding cartons measuring 300 GSM at origin can behave like 295 and 308 at delivery if moisture diverges.
To validate structural integrity across the supply chain, engineers utilize ISTA (International Safe Transit Association) protocols—particularly when folding cartons face extended transit through variable climate conditions.
How Automated Line Jams Begin Before the Line Ever Starts
The path from specification gap to line stoppage follows a consistent pattern. Understanding the mechanism clarifies why fixes belong upstream in procurement rather than downstream in operations.
The buyer uses general language. The RFQ requests ‘high-quality folding carton, standard board grade, suitable for automated filling.’ “Standard,” “high-quality,” and “suitable” all invite supplier interpretation.
Suppliers interpret differently. Supplier A assumes 280 GSM with moderate moisture resistance. Supplier B quotes 310 GSM with tighter COBB control. Supplier C matches the buyer’s current supplier’s last shipment, which may or may not reflect what the line actually needs. Each supplier responds to a different underlying material reality. Their quotes arrive on the same comparison spreadsheet.
Price drives selection. Without technical normalization, comparison defaults to landed cost. Supplier A’s lower GSM and looser tolerances produce the lowest quote. The order goes to Supplier A.
Production reveals variance. First pallets arrive and move to the line. Folding cartons from pallet edges—exposed to more humidity variation during transit—warp slightly. Vacuum grippers lose suction intermittently. The folding station jams on an inconsistent caliper. Throughput drops. Operators reject folding cartons manually, adding labor costs and slowing production further.
Blame disperses without resolution. Operations blames the supplier. The supplier points to the approved sample. Procurement reviews the RFQ and finds no measurable specification was violated—because no measurable specification was defined. Quality suggests tightening incoming inspection, adding time and cost without preventing recurrence.
The root cause was not a problematic supplier, inadequate inspection, or operational error. It was a normalization gap at RFQ stage that allowed suppliers to quote against different technical baselines.

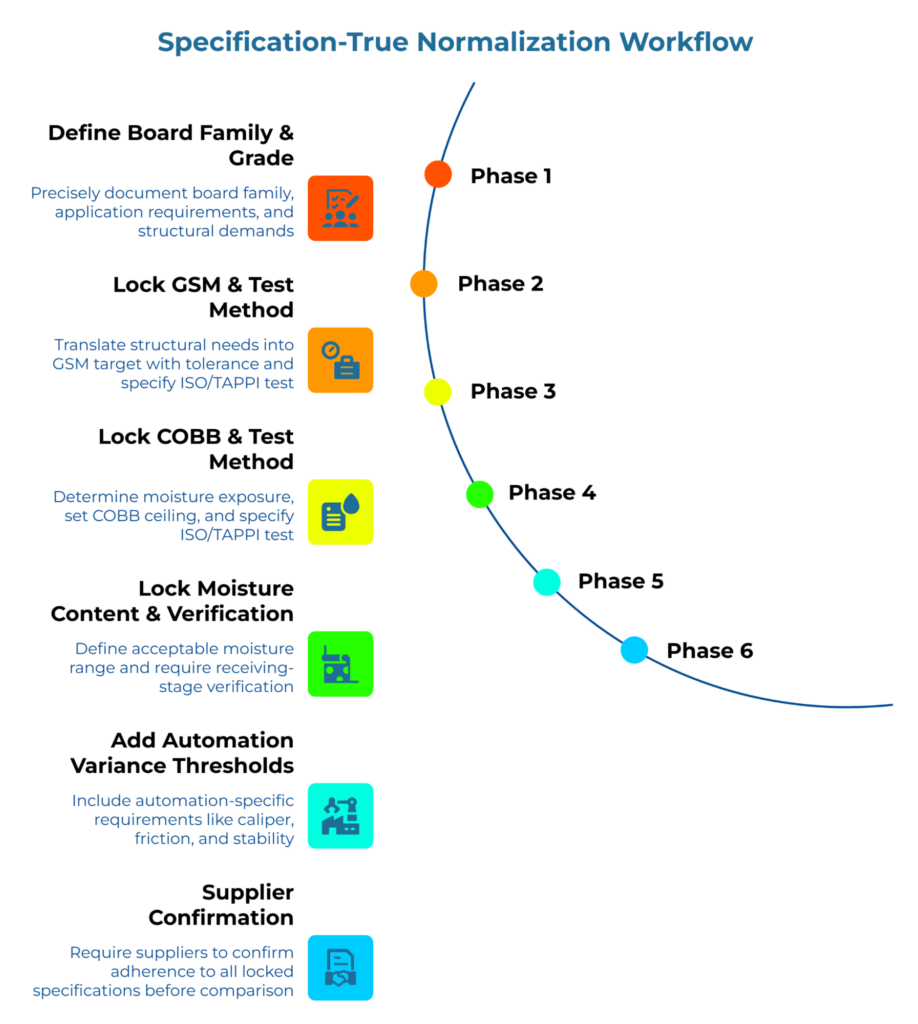

A Specification-True Normalization Workflow for the Next Supplier Round
This workflow converts methodology into execution sequence. Each phase builds on previous ones. Skipping steps reintroduces the interpretation gaps the process eliminates.
Phase 1: Define board family and grade language precisely. Start with the board family (SBS, FBB, CRB, etc.) and application-specific requirements. Document structural demands the line places on folding cartons: folding angles, vacuum pickup zones, stacking loads during transit.
Phase 2: Lock GSM with tolerance band and test method. Translate structural requirements into basis weight target. Add ±% tolerance reflecting line sensitivity to variance. Name conditioning and testing standard explicitly—whether ISO 536 or TAPPI T 410.
Phase 3: Lock COBB with ceiling, duration, and method. Determine moisture exposure profile folding cartons face between production and end use. Set COBB value maintaining structural integrity through that profile. Specify test duration and method — ISO 535 or TAPPI T 441.
Phase 4: Lock moisture content window with receiving-stage verification. Set acceptable moisture range accounting for transit variability. Require verification at receiving, not certification at origin alone. Reference ISO 287 or TAPPI T 412 for measurement protocol.
Phase 5: Add automation-relevant variance thresholds. If the line has specific sensitivities—caliper variance tolerance for vacuum pickup, surface friction requirements for feeding, dimensional stability criteria—add these as named requirements with test methods.
Phase 6: Require supplier confirmation against the locked baseline before comparison. Before comparing quotes, each supplier acknowledges the specification set and confirms ability to hold all parameters within defined tolerances. Quotes from suppliers who cannot confirm are not comparable—they respond to different specifications.
The output is a single-page specification document accompanying every RFQ. This becomes a shared technical language between Procurement, Operations, Quality, and suppliers. When everyone works from identical baselines, “acceptable quality” stops being subjective.
Our baseline packaging parameter checklist: structuring your folding carton specification requirements provides a ready-to-use framework for structuring these requirements.
Stop Trusting Visual Samples as Proof
A visual sample demonstrates what a supplier can produce under controlled conditions. It does not prove consistent production at scale.
Sample folding cartons are typically selected rather than randomly pulled. They come from optimal machine conditions, often from mid-reel positions where moisture is most stable. They receive careful packaging for shipment. They arrive representing the ideal version of the product.
Production runs differ. Material comes from full reels including edge variance. Production floor humidity fluctuates. Pallets sit in staging areas where temperature shifts. Folding cartons from pallet edges absorb more moisture during transit than folding cartons from protected center positions.
Visual approval conflates capability with consistency. A supplier producing a flawless sample is not automatically a supplier holding tight tolerances across a 50,000-folding carton production run. Samples demonstrate ceiling performance, not floor.
The stronger position is not to reject samples. It is to demote them. Appearance review should follow normalization, not replace it.
Specification documents matter more than sample reviews for this reason. A sample shows appearance. A specification lock—confirmed by the supplier with named test methods and tolerance acknowledgment—establishes what gets measured. The first creates confidence based on looks. The second creates accountability based on numbers.
When visual samples replace technical specifications, suppliers effectively define buyer acceptance criteria. They show what they want accepted. The buyer approves. When production variance exceeds sample characteristics, no enforceable standard exists for reference.
The truth decay of data sheets: why relying on supplier specifications ruins folding carton specifications examines how vendor-led documentation creates specification drift over time.
What to Demand From Suppliers Instead
Replace subjective sample approval with documented evidence mapping directly to locked specifications. Each requirement in the specification document should have corresponding proof suppliers provide before production begins.
Confirmation against the locked parameter set. Before quotes enter comparison, suppliers provide written acknowledgment of capability to hold every specified parameter within defined tolerances. This commitment creates accountability when production deviates.
Named test methods in documentation. Supplier certificates should reference specific ISO or TAPPI methods the specification requires. “Moisture content: 7.2%” is incomplete. “Moisture content: 7.2% per ISO 287, tested 2026, conditioned per ISO 187″ is verifiable. Suppliers unable to match documentation format to required test methods reveal information about their process control. This is why buyers should find suppliers through platforms that maintain rigorous verification processes—filtering out vendors who cannot demonstrate such documentation capability.
Run-relevant proof rather than production-wide generalizations. Request test results from recent production runs of the specified grade, not laboratory capability studies or historical averages. Evidence should demonstrate current capability on material similar to the order.
Certificates of analysis tracing to the specification document. COAs should reference purchase order and specification version, not generic supplier quality standards. This documentation chain connects incoming material directly to defined requirements—making deviations immediately identifiable.
Pre-shipment verification when variance history exists. For new suppliers or those with previous deviation issues, require third-party or buyer-verified testing before shipment. Buyers can identify suppliers who have completed live verification by looking for trust indicators when they connect with suppliers through verified marketplace platforms. Pre-shipment verification costs are marginal compared to line downtime from out-of-specification material reaching production.
The goal is moving quality conversation from post-failure inspection to pre-production confirmation. Suppliers providing this evidence demonstrate process control capable of holding specifications. Suppliers who cannot are communicating something about their capability.
The folding carton specification alignment checklist: connecting compliance to supplier vetting details how to build evidence requirements into supplier qualification processes.
How to Turn Specification-True Normalization Into a Repeatable Team Standard
The methodology works when it becomes a shared process rather than an isolated procurement initiative. Three functions—Procurement, Operations, and Quality—each contribute essential inputs. Without cross-functional alignment, specification documents become files sitting in folders while visual approval continues unchanged.
Procurement owns RFQ structure. The specification document travels with every RFQ. Quote comparison begins only after supplier confirmations arrive. Landed cost analysis includes only quotes responding to the locked specification.
Operations own parameter inputs. Line sensitivity data—caliper tolerance for vacuum pickup, moisture window for clean folds, dimensional consistency requirements—comes from Operations. These inputs determine specification numbers. Without Operations involvement, Procurement defines parameters that may not reflect actual line requirements.
Quality owns verification protocol. Incoming inspection tests against locked specifications using named test methods. Deviations get documented against specific parameters, creating data informing future specification refinements. Quality also validates that supplier COAs match required format and methods.
Alignment happens in a single pre-RFQ meeting. Fifteen minutes with representatives from all three functions, working from recent failure data, produces a specification document everyone owns. Once alignment is achieved, buyers can confidently submit their buying requirements knowing their RFQ reflects true operational needs. The alternative—Procurement guessing at technical requirements, Operations complaining after delivery, Quality adding inspection burden without prevention authority—consumes more time and money than the alignment meeting ever would.
This is not about creating process overhead. It is about placing conversation in the right sequence. Debate over what “acceptable quality” means should happen before suppliers quote, when definition has leverage. After orders ship, the only remaining option is blame.
Next Step: Before the next supplier round, test current specification language against the three-baseline standard. Is GSM locked with tolerance and method? Is COBB defined with ceiling, duration, and test standard? Is moisture content specified as a range with receiving verification?
If any baseline is missing or vague, the visual approval gap remains open.
Use the baseline packaging parameter checklist to structure alignment conversation between Procurement, Operations, and Quality. Then issue RFQs with specifications no supplier needs to interpret.
